Schneider Electric Acti 9 iTL Phase 1-Pole Latching Relay 16A 12V 1NO 12VDC 24VAC
Phase Relays

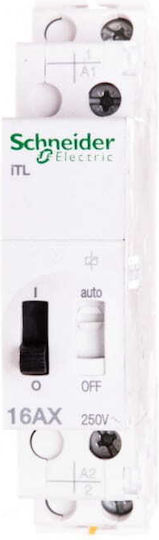

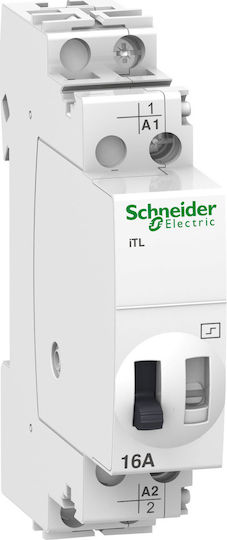

Schneider Electric Acti 9 iTL Phase 1-Pole Latching Relay 16A 12V 1NO 12VDC 24VAC

The Schneider Electric Acti 9 iTL modular impulse relay operates with a normally open circuit and is controlled via an illuminated push button. It is mounted on a DIN rail and features ON/OFF marking,...

The Schneider Electric Acti 9 iTL modular impulse relay operates with a normally open circuit and is controlled via an illuminated push button. It is mounted on a DIN rail and features ON/OFF marking, as well as a large space for circuit identification.

  • Type: Impulse
  • Number of poles: 1
  • Rated current: 16 A
  • Operating voltage: 250 V AC, 50/60 Hz
  • Control...
See Description & Specifications See Description & Specifications
16 17 €
Delivery Wed, 18 Nov - Fri, 20 Nov
14,00 €   shipping cost
Sent from Greece
From Meidanis 4.6 (58)
4.6 (58 reviews)
Greece
10 pieces
See Electrical Panel Supplies on the page of Meidanis

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Schneider Electric Acti 9 iTL modular impulse relay operates with a normally open circuit and is controlled via an illuminated push button. It is mounted on a DIN rail and features ON/OFF marking, as well as a large space for circuit identification.

  • Type: Impulse
  • Number of poles: 1
  • Rated current: 16 A
  • Operating voltage: 250 V AC, 50/60 Hz
  • Control voltage: 24 V AC, 50/60 Hz / 12 V DC
  • Normally open contacts: 1
  • Normally closed contacts: 0
  • Pulse duration: 50 ms–1 s
  • Control: Illuminated push button
  • Local marking: ON/OFF
  • Mounting: DIN rail
  • Module width: 2 × 9 mm
  • Height: 84 mm
  • Width: 18 mm
  • Depth: 60 mm
  • Tropicalization: 2
  • Circuit identification space: Large
  • Terminals: Insulated
  • Degree of protection: IP20

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Latching
Number of Poles
1
Voltage
12 V
Nominal Voltage
16 A
with Energy Consumption Meter
No
with Timer
No
Type of Residual Current Relay
Type A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
