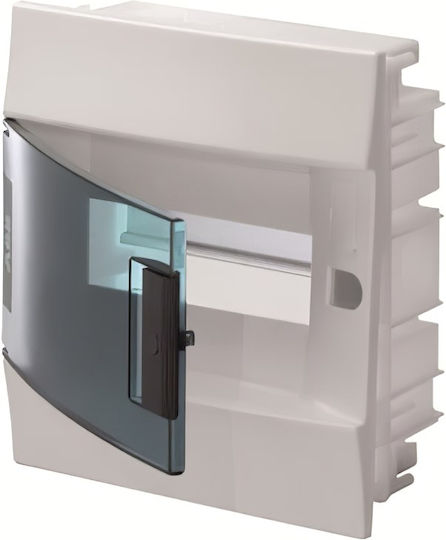

Recessed plastic distribution boards, MISTRAL41F from ABB.

IP 41, IK 08 (5 Joules), electrical insulation class II.

Made from self-extinguishing thermoplastic material in white color (RAL 9016), fire-resistant up to 650°C according to the IEC 60695-2-11 standard.

They feature:

• Removable frame for easier wiring and installation of materials.
• Neutral and grounding terminals with screws.
• Transparent door in petrol-blue or white shade.
• Hinged left or right up to 180°, with or without a lock.

Available in:

• 1 to 4 rows with an axial distance of 150 mm.
• Hosting from 4 to 72 elements of 17.5mm width.

They include removable pre-punched plates on the top and bottom sides of the panel, as well as pre-punched holes on the sides for direct cable entry from the wall.

Compliant with the IEC 60670-24 standard.
