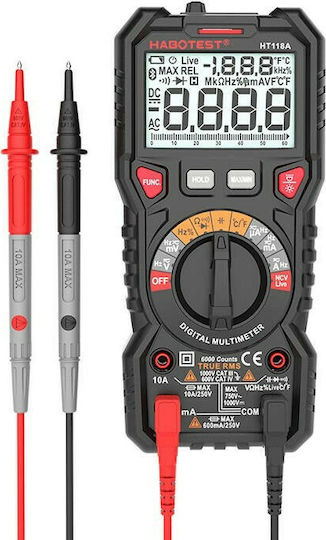

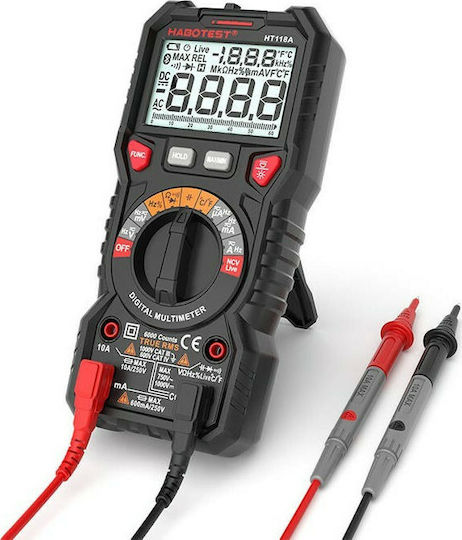

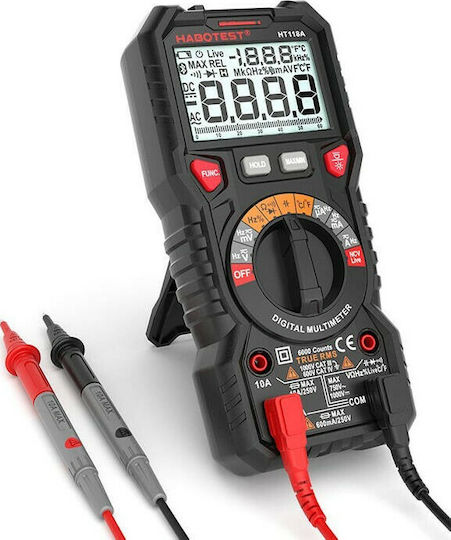

Habotest Digital Multimeter True RMS with AC / DC / Resistance / Capacitance / Temperature Measurement HT118A
Digital Multimeters

Habotest Digital Multimeter True RMS with AC / DC / Resistance / Capacitance / Temperature Measurement HT118A

The Habotest meter is an essential tool that provides accurate measurement of parameters such as voltage, continuity, or temperature, among others. The backlit display makes it easy to use.

The Habotest meter is an essential tool that provides accurate measurement of parameters such as voltage, continuity, or temperature, among others. The backlit display makes it easy to use.

See full description See full description
Product report

Description

Description

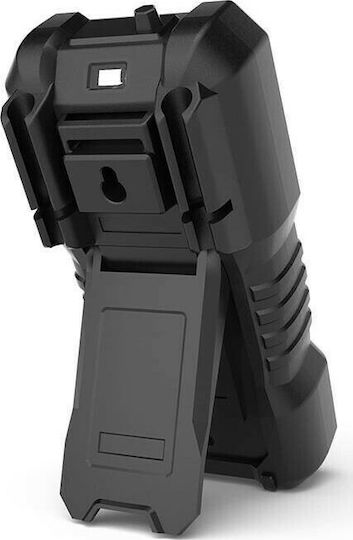

The Habotest meter is an essential tool that provides accurate measurement of parameters such as voltage, continuity, or temperature, among others. The backlit display makes it easy to use. The built-in flashlight will allow you to work in dark rooms, and with a special stand, you can securely place the device on a flat surface. The product is also equipped with NCV sensors for non-contact voltage measurement. The meter supports automatic range selection.

The HT118A has many useful functions. You can use it to measure AC and DC voltage, capacitance, and temperature from -40°C to 1000°C, among others. You can also check if a wire is live and test for continuity. But that's not the end of its capabilities! The meter also allows for non-contact voltage measurement (NCV).

Technical Specifications

  • DC Voltage (range + accuracy) 600 mV ± (0.5% + 3);
  • 6/60/600/1000 V ± (0.5% + 3) 600 mV / 6 V / 60 V / 600 V / 1000 V ± (0.5% + 3)
  • AC Voltage (range + accuracy) 600 mV ± (1.0% + 5);
  • 6/60/600/750 V ± (1.0% + 5) 6/60/600/750 V ± (1.0% + 5)
  • DC Current (range + accuracy) 600 uA / 6000 uA / 60 mA / 600 mA ± (0.8% + 3);
  • 6/10 A ± (1.2% + 3) 60 uA / 60 mA / 600 mA ± (0.8% + 3);
  • 10 A ± (1.2% + 3)
  • AC Current (range + accuracy) 600 uA / 6000 uA / 60 mA / 600 mA ± (1.0% + 3);
  • 6 A / 10 A ± (1.5% + 3) 60/600 mA ± (1.0% + 3);
  • 10 A ± (1.5% + 3)
  • Resistance (range + accuracy) 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8% + 3) 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8 % + 3)
  • Capacitance (range + accuracy) 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF ± (4.0% + 3);
  • 100 mF ± (5.0% + 5) 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF ± (4.0% + 3);
  • 100 mF ± (5.0% + 5)
  • Frequency (range + accuracy) 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz ± (1.0% + 3) 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz ± (1.0% + 23)
  • Duty Cycle (range + accuracy) 1-99% ± (1.0% + 2) 1-99% ± (1.0% + 2)
  • Temperature (range + accuracy) -40 °C-1000 °C ± (1.0% + 3);
  • -40 °F-1832 °F ± (1.0% + 3) -40 °C-1000 ° ± (1.0% + 3);
  • -40 °F-1832 °F ± (1.0% + 3)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Colour
Black
with LCD Screen
Yes
True RMS
Yes
with Buzzer
No
