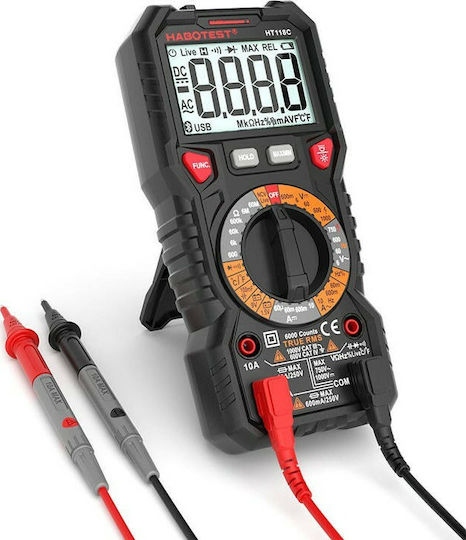

Habotest Digital Multimeter True RMS with AC / DC / Resistance / Capacitance / Temperature Measurement HT118C
Digital Multimeters

Habotest Digital Multimeter True RMS with AC / DC / Resistance / Capacitance / Temperature Measurement HT118C

The Habotest meter is an essential tool that provides accurate measurements. The backlit display makes it easy to use. The built-in flashlight will allow you to work in dark rooms, and with a special...

The Habotest meter is an essential tool that provides accurate measurements. The backlit display makes it easy to use. The built-in flashlight will allow you to work in dark rooms, and with a special stand, you can securely place the device on a flat surface. The product is also equipped with NCV sensors for non-contact voltage measurement. The meter...

See full description See full description
Product report

Description

Description

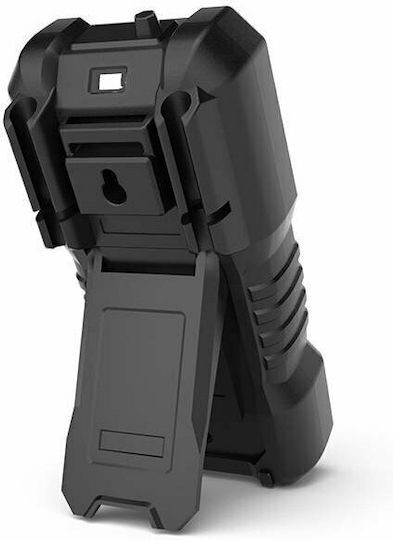

The Habotest meter is an essential tool that provides accurate measurements. The backlit display makes it easy to use. The built-in flashlight will allow you to work in dark rooms, and with a special stand, you can securely place the device on a flat surface. The product is also equipped with NCV sensors for non-contact voltage measurement. The meter supports manual selection.

Measures many different parameters

The HT118C has many useful functions. You can use it to measure AC and DC voltage, capacitance, and temperature from -40°C to 1000°C, among others. You can also check if a cable is live. But that's not the end of its capabilities! The meter also allows for non-contact NCV voltage measurement.

Technical Specifications

  • DC Voltage (range + accuracy) 600 mV ± (0.5% + 3);
  • 6/60/600/1000 V ± (0.5% + 3) 600 mV / 6 V / 60 V / 600 V / 1000 V ± (0.5% + 3)
  • AC Voltage (range + accuracy) 600 mV ± (1.0% + 5);
  • 6/60/600/750 V ± (1.0% + 5) 6/60/600/750 V ± (1.0% + 5)
  • DC Current (range + accuracy) 600 uA / 6000 uA / 60 mA / 600 mA ± (0.8% + 3);
  • 6/10 A ± (1.2% + 3) 60 uA / 60 mA / 600 mA ± (0.8% + 3);
  • 10 A ± (1.2% + 3)
  • AC Current (range + accuracy) 600 uA / 6000 uA / 60 mA / 600 mA ± (1.0% + 3);
  • 6 A / 10 A ± (1.5% + 3) 60/600 mA ± (1.0% + 3);
  • 10 A ± (1.5% + 3)
  • Resistance (range + accuracy) 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8% + 3) 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8% + 3)
  • Capacitance (range + accuracy) 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF ± (4.0% + 3);
  • 100 mF ± (5.0% + 5) 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF ± (4.0% + 3);
  • 100 mF ± (5.0% + 5)
  • Frequency (range + accuracy) 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz ± (1.0% + 3) 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz ± (1.0% + 23)
  • Duty (range + accuracy) 1-99% ± (1.0% + 2) 1-99% ± (1.0% + 2)
  • Temperature (range + accuracy) -40 °C-1000 °C ± (1.0% + 3);
  • -40 °F-1832 °F ± (1.0% + 3) -40 °C-1000 ° ± (1.0% + 3);
  • -40 °F-1832 °F ± (1.0% + 3)

Features

  • Automatic Manual Automatic / Manual Range
  • LCD Display LCD
  • Live Test
  • Audible and Light Alarm
  • NCV,
  • Diode Test
  • Max / Min
  • Data Hold
  • True RMS
  • Bandwidth 1 kHz
  • Battery Test (1.5V / 9V)
  • Low Battery Indicator
  • Auto Power Off
  • Dual Color Backlight
  • Input Jack LED Indicates
  • Flashlight
  • Power Supply 2x AA Battery (Included) 2x AA Battery (Not Included)
  • Weight Appx. 350 g Approx. 350 g
  • Dimensions 188x88x58 mm 188x88x58 mm
  • Safety EN61010-1, -2-030;
  • EN61010-2-033;
  • EN61326-1 CAT III 1000 V, CATIV 600 V EN61010-1, -2-030;
  • EN61010-2-033;
  • EN61326-1 CAT III 1000 V, CATIV 600 V

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Colour
Black
with LCD Screen
Yes
True RMS
Yes
with Buzzer
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (3)

Reviews

5.0
3
5.0
Review this product
  1. 3
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Construction quality
  • Accuracy in measurements
  • Value for money
  • estaloca311
    5
    estaloca311

    Verified purchase

    Fantastic value for money, minimal deviation in measurements from a recently calibrated and very expensive Rigol bench multimeter.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Thunderpuff

    Verified purchase

    • Construction quality
    • Accuracy in measurements
    • Value for money
  • 5
    pc man

    Verified purchase

    • Construction quality
    • Accuracy in measurements
    • Value for money

Description & Specifications

The Habotest meter is an essential tool that provides accurate measurements. The backlit display makes it easy to use. The built-in flashlight will allow you to work in dark rooms, and with a special stand, you can securely place the device on a flat surface. The product is also equipped with NCV sensors for non-contact voltage measurement. The meter supports manual selection.

Measures many different parameters

The HT118C has many useful functions. You can use it to measure AC and DC voltage, capacitance, and temperature from -40°C to 1000°C, among others. You can also check if a cable is live. But that's not the end of its capabilities! The meter also allows for non-contact NCV voltage measurement.

Technical Specifications

  • DC Voltage (range + accuracy) 600 mV ± (0.5% + 3);
  • 6/60/600/1000 V ± (0.5% + 3) 600 mV / 6 V / 60 V / 600 V / 1000 V ± (0.5% + 3)
  • AC Voltage (range + accuracy) 600 mV ± (1.0% + 5);
  • 6/60/600/750 V ± (1.0% + 5) 6/60/600/750 V ± (1.0% + 5)
  • DC Current (range + accuracy) 600 uA / 6000 uA / 60 mA / 600 mA ± (0.8% + 3);
  • 6/10 A ± (1.2% + 3) 60 uA / 60 mA / 600 mA ± (0.8% + 3);
  • 10 A ± (1.2% + 3)
  • AC Current (range + accuracy) 600 uA / 6000 uA / 60 mA / 600 mA ± (1.0% + 3);
  • 6 A / 10 A ± (1.5% + 3) 60/600 mA ± (1.0% + 3);
  • 10 A ± (1.5% + 3)
  • Resistance (range + accuracy) 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8% + 3) 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8% + 3)
  • Capacitance (range + accuracy) 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF ± (4.0% + 3);
  • 100 mF ± (5.0% + 5) 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF ± (4.0% + 3);
  • 100 mF ± (5.0% + 5)
  • Frequency (range + accuracy) 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz ± (1.0% + 3) 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz ± (1.0% + 23)
  • Duty (range + accuracy) 1-99% ± (1.0% + 2) 1-99% ± (1.0% + 2)
  • Temperature (range + accuracy) -40 °C-1000 °C ± (1.0% + 3);
  • -40 °F-1832 °F ± (1.0% + 3) -40 °C-1000 ° ± (1.0% + 3);
  • -40 °F-1832 °F ± (1.0% + 3)

Features

  • Automatic Manual Automatic / Manual Range
  • LCD Display LCD
  • Live Test
  • Audible and Light Alarm
  • NCV,
  • Diode Test
  • Max / Min
  • Data Hold
  • True RMS
  • Bandwidth 1 kHz
  • Battery Test (1.5V / 9V)
  • Low Battery Indicator
  • Auto Power Off
  • Dual Color Backlight
  • Input Jack LED Indicates
  • Flashlight
  • Power Supply 2x AA Battery (Included) 2x AA Battery (Not Included)
  • Weight Appx. 350 g Approx. 350 g
  • Dimensions 188x88x58 mm 188x88x58 mm
  • Safety EN61010-1, -2-030;
  • EN61010-2-033;
  • EN61326-1 CAT III 1000 V, CATIV 600 V EN61010-1, -2-030;
  • EN61010-2-033;
  • EN61326-1 CAT III 1000 V, CATIV 600 V

Manufacturer

Manufacturer Details

Warnings & Safety Information
Colour
Black
with LCD Screen
Yes
True RMS
Yes
with Buzzer
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
