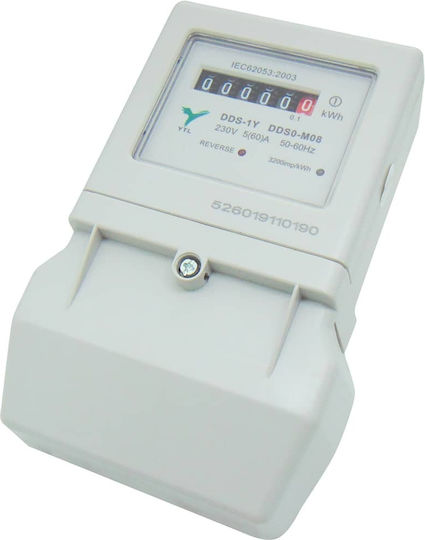

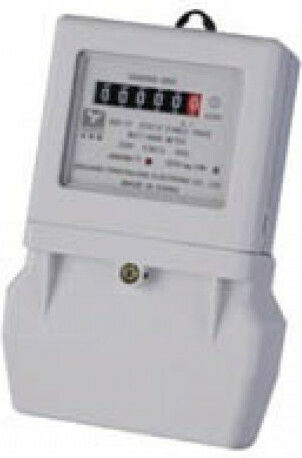

DDSO-M08 Electric Panel Meter Analog Wall-mounted Single-phase 1P 5-100A 02.037.0016

The DDSO-M08 single-phase kilowatt-hour meter measures energy consumption and features an analog display. It is mounted on a vertical surface and connected directly to the mains, without a...

The DDSO-M08 single-phase kilowatt-hour meter measures energy consumption and features an analog display. It is mounted on a vertical surface and connected directly to the mains, without a transformer.

  • Display type: Analog
  • Installation type: Wall-mounted
  • Number of phases: 1
  • Rated operating voltage: 230 VAC
  • Current range: 5–100 A
  • Frequency: 50/60 Hz
  • Output:...
See Description & Specifications See Description & Specifications
21 95 €
Delivery by Thu, 26 Nov
14,00 €   shipping cost
Sent from Greece
From Galazoula 5.0 (5)

Learn more about invoicing

Description & Specifications

The DDSO-M08 single-phase kilowatt-hour meter measures energy consumption and features an analog display. It is mounted on a vertical surface and connected directly to the mains, without a transformer.

  • Display type: Analog
  • Installation type: Wall-mounted
  • Number of phases: 1
  • Rated operating voltage: 230 VAC
  • Current range: 5–100 A
  • Frequency: 50/60 Hz
  • Output: Pulse
  • Standards: IEC 62052-11, IEC 62053-21
  • Certifications: ISO, RoHS

Manufacturer

Type
Kilowatt meter
Display Type
Analog
Installation Type
Wall-mounted
Number of Phases
Single-phase
