Alean ABI30-17210 Wired Detector 10 Beams 10-18V Operating Voltage 30m Scope
Beam Sensors

Alean ABI30-17210 Wired Detector 10 Beams 10-18V Operating Voltage 30m Scope

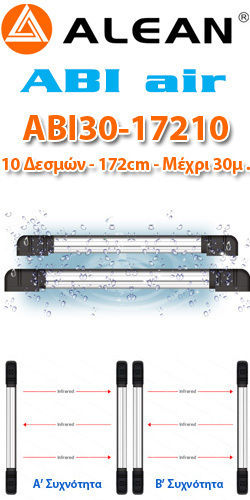

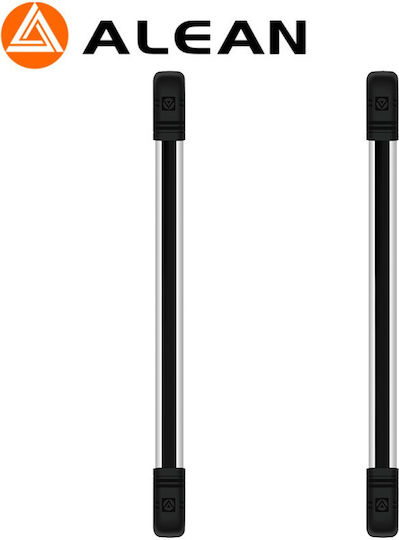

Alean ABI30-17210 infrared column-type detectors ABI AIR.

  • Maximum detection range: 30m
  • Height: 172 centimeters
  • Number of Beams: 10
  • Adjustable power in 3 levels

Alean ABI30-17210 infrared column-type detectors ABI AIR.

  • Maximum detection range: 30m
  • Height: 172 centimeters
  • Number of Beams: 10
  • Adjustable power in 3 levels
See full description See full description

  • Login

    Wired

    It connects to the installation system with a cable and is powered through it.

  • Number of Beams

    The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.

  • Range

    The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.

  • Length

    Usually, the greater the length, the more beams there are in the device, and therefore the greater the coverage length of the detector.

  • Operating Voltage

    It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.
  • See all
Product report

Description

Description

Alean ABI30-17210 infrared column-type detectors ABI AIR.

  • Maximum detection range: 30m
  • Height: 172 centimeters
  • Number of Beams: 10
  • Adjustable power in 3 levels

Features:

  • Multiple interactive infrared beams
  • Detection with interruption of 2 consecutive beams
  • NC / NO relay output
  • Easy alignment with LED visual indicator and buzzer
  • High-quality aluminum alloy cover
  • Resistant to rain, fog, snow, and frost
  • Digital frequency conversion.
  • CPU microprocessor
  • Very good external interference isolation.
  • AGC full digital circuit design
  • Very good false alarm isolation.
  • Variable horizontal viewing angle up to 180°
  • Maximum detection range: 30m
  • Height: 172 centimeters
  • Number of Beams: 10 beams
  • Response speed 40msec
  • Alarm output: NO / NC
  • Tamper NC / NO. 1B output contact, DC26V / 0.5AMax.
  • Power and voltage DC10-18V
  • Dimensions 172 x 40W x 45D mm
  • Operating current 30-90mA max
  • Operating temperature: -25 ℃ -55 ℃

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
30 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
10 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Operating Voltage
10-18V

Operating Voltage

It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.
Length
172 cm

Length

Usually, the greater the length, the more beams there are in the device, and therefore the greater the coverage length of the detector.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

Alean ABI30-17210 infrared column-type detectors ABI AIR.

  • Maximum detection range: 30m
  • Height: 172 centimeters
  • Number of Beams: 10
  • Adjustable power in 3 levels

Features:

  • Multiple interactive infrared beams
  • Detection with interruption of 2 consecutive beams
  • NC / NO relay output
  • Easy alignment with LED visual indicator and buzzer
  • High-quality aluminum alloy cover
  • Resistant to rain, fog, snow, and frost
  • Digital frequency conversion.
  • CPU microprocessor
  • Very good external interference isolation.
  • AGC full digital circuit design
  • Very good false alarm isolation.
  • Variable horizontal viewing angle up to 180°
  • Maximum detection range: 30m
  • Height: 172 centimeters
  • Number of Beams: 10 beams
  • Response speed 40msec
  • Alarm output: NO / NC
  • Tamper NC / NO. 1B output contact, DC26V / 0.5AMax.
  • Power and voltage DC10-18V
  • Dimensions 172 x 40W x 45D mm
  • Operating current 30-90mA max
  • Operating temperature: -25 ℃ -55 ℃

Manufacturer

Manufacturer Details

Warnings & Safety Information
Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
30 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
10 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Operating Voltage
10-18V

Operating Voltage

It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.
Length
172 cm

Length

Usually, the greater the length, the more beams there are in the device, and therefore the greater the coverage length of the detector.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
