Maxge Phase Relay Latching 16A Single Pole with Voltage 230V 1NO 230VAC/110VDC MGIR MXG
Phase Relays

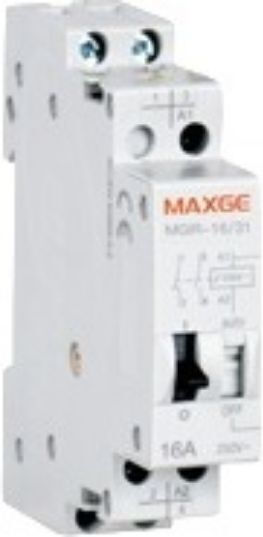

Maxge Phase Relay Latching 16A Single Pole with Voltage 230V 1NO 230VAC/110VDC MGIR MXG

The Maxge single-pole DIN-rail latching relay changes state with each operation and has one normally open contact (1NO). It mounts on a 35 mm DIN rail and complies with the EN60669-2-2 standard.

  • ...

The Maxge single-pole DIN-rail latching relay changes state with each operation and has one normally open contact (1NO). It mounts on a 35 mm DIN rail and complies with the EN60669-2-2 standard.

  • Type: Latching relay
  • Number of poles: 1
  • Contacts: 1NO
  • Rated voltage: 230 VAC / 110 VDC
  • Rated current: 16 A
  • Insulation voltage: 440 V
  • Rated impulse withstand...
See Description & Specifications See Description & Specifications
19 38 €
Delivery by Thu, 19 Nov
14,00 €   shipping cost
Sent from Greece
From Electronix 3.3 (63)
3.3 (63 reviews)
Greece
20+ pieces
See Electrical Panel Supplies on the page of Electronix

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Maxge single-pole DIN-rail latching relay changes state with each operation and has one normally open contact (1NO). It mounts on a 35 mm DIN rail and complies with the EN60669-2-2 standard.

  • Type: Latching relay
  • Number of poles: 1
  • Contacts: 1NO
  • Rated voltage: 230 VAC / 110 VDC
  • Rated current: 16 A
  • Insulation voltage: 440 V
  • Rated impulse withstand voltage: 6 kV
  • Response time: 50 ms
  • Mechanical endurance: 200,000 operations

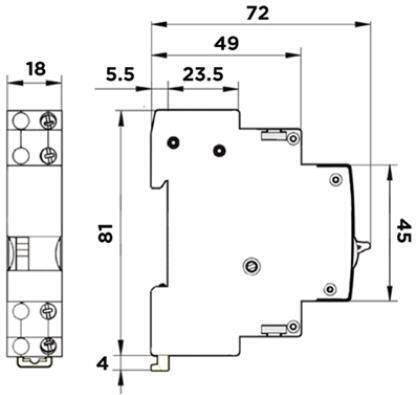

  • Width: 18 mm per pole
  • Mounting: On a 35 mm DIN rail
  • Standard: EN60669-2-2

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Latching
Number of Poles
1
Voltage
230 V
Nominal Voltage
16 A
with Energy Consumption Meter
No
with Timer
No
