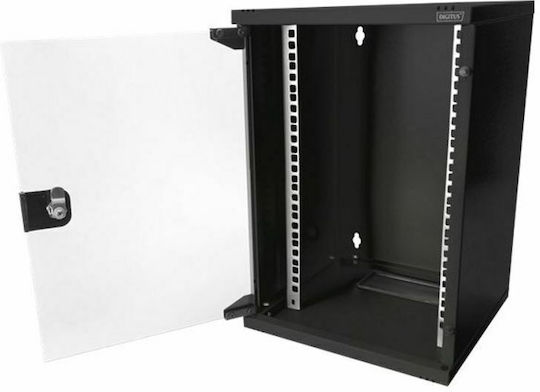

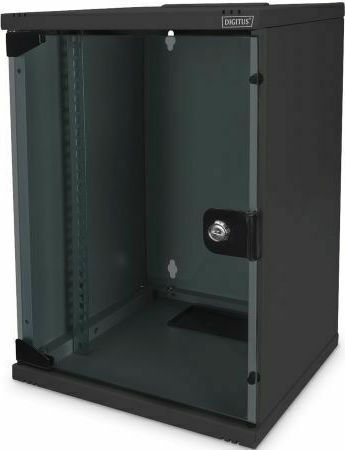

The Digitus DN-10-09U-B wall-mounted rack cabinet is designed for 10" (254 mm) equipment and offers 9U of mounting space. It is made of 1.1–1.5 mm thick sheet steel with a powder-coated finish and features a glass front door with a single-point lock and a 200° opening angle. The galvanized profile rails are depth-adjustable and can be installed in two positions.

Cable entries are located at the top and bottom, while ventilation slots support active and passive ventilation. The steel construction can be grounded via grounding studs. The cabinet is suitable for network and telecommunications installations, structured IT cabling, home use and small offices.

• Mounting: Wall-mounted
• Equipment size: 10" (254 mm)
• Rack units: 9U
• Material: Sheet steel
• Sheet thickness: 1.1–1.5 mm
• Finish: Powder-coated
• Colour: Black, RAL 9005
• Front door: Glass
• Lock: Single-point
• Door opening angle: 200°
• Profile rails: Galvanized, depth-adjustable and installable in 2 positions
• Cable entries: At the top and bottom
• Bottom cable entry cover: Plastic
• Top cable entry: With brush strip
• Ventilation: Active and passive via slots
• Maximum mounting depth: 240 mm
• Maximum load: 30 kg
• Protection rating: IP20
• Grounding: Via grounding studs
• Width: 31.2 cm
• Height: 46.4 cm
• Depth: 30 cm
• Weight: 7.62 kg
• Assembly: Assembled
