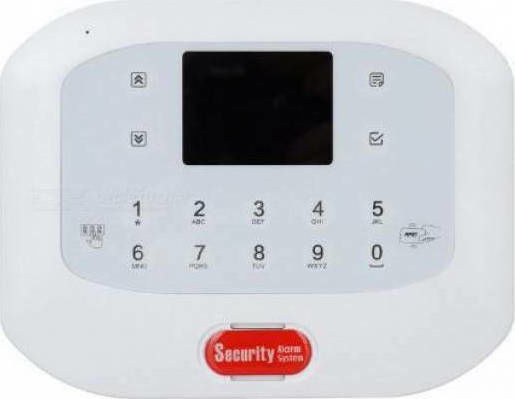

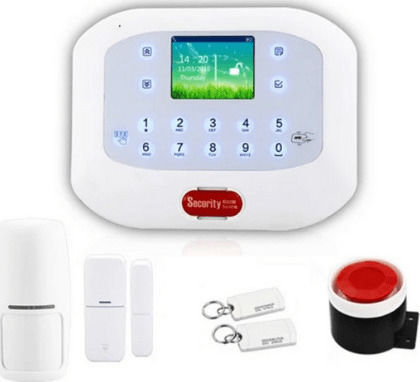

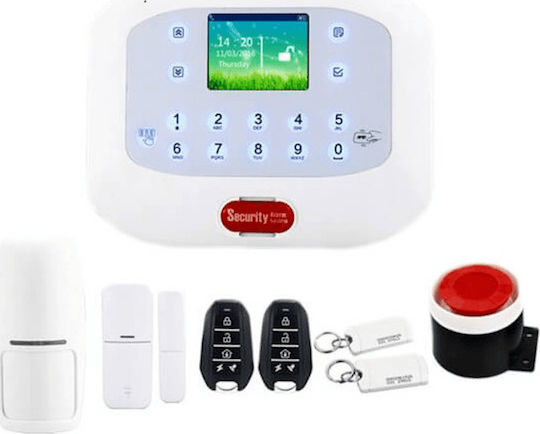

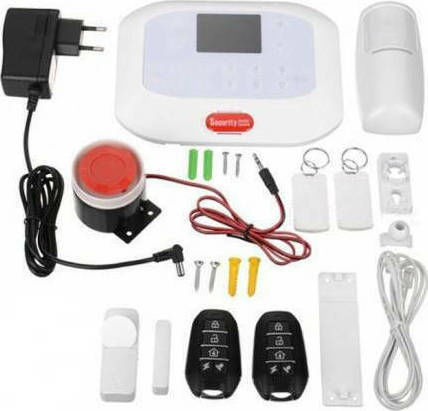

The Tele DY-GSM50A wireless alarm system uses a GSM connection and includes a control panel with a color TFT LCD screen and touch keypad. It supports up to 6 wired and 50 wireless protection zones, as well as up to 8 wireless remote controls. It features an RFID function for use with an electromagnetic lock and records voice messages up to 10 seconds long.
You can set 6 phone numbers to receive alarm calls and 3 numbers to receive SMS notifications. The system supports a 315 MHz wireless siren and a wired siren, and sends an SMS notification in the event of low voltage. The built-in rechargeable lithium battery powers the control panel in the event of a power outage.
- Connectivity: GSM
- Network connection: GSM and PSTN
- Motion detector: 1 wireless
- Door/window sensor: 1 wireless
- Siren: 1
- Remote controls: 2
- Tags: 2
- Control panel: 1
- Keypad: 1, touch
- Display: Color TFT LCD with clock display
- Protection zones: Up to 6 wired and 50 wireless
- Alarm phone numbers: Up to 6
- Alarm SMS numbers: Up to 3
- Voice message recording time: 10 seconds
- Siren volume: 120 dB
- Radio frequency: 433 MHz (±75 KHz)
- GSM operating frequencies: 850/900/1800/1900 MHz
- Backup battery: Rechargeable 4.2 V, 350 mA lithium battery
- Input voltage: DC 5 V, 2 A
- Standby current: Up to 65 mA
- Alarm current: Up to 300 mA
- Full charging time: 10 hours
- Standby time: 4.5 hours
- Remote control range: Up to 40 m in open space
- Wireless detector range: Up to 80 m in open space
- Operating temperature: From -10 °C to +50 °C
- Protocol: Ademco Contact ID
- Product Number
- DY-GSM50A
Type
- Wireless
- Yes
- Motion Sensor
- Yes
- Remote Control
- Yes
- Siren
- Yes
- Door/Window Sensor
- Yes
- Camera
- No
- Autonomic
- No
- Keyboard
- Yes
- Hub
- Yes
Quantity
- Motion Sensor
- 1
- Door/Window Sensor
- 1
- Remote Control
- 2
- Siren
- 1
- Tags
- 2
Attributes
- Connectivity
- GSM
