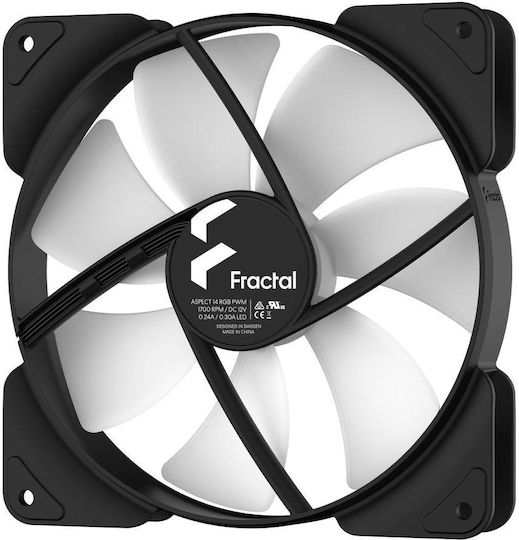

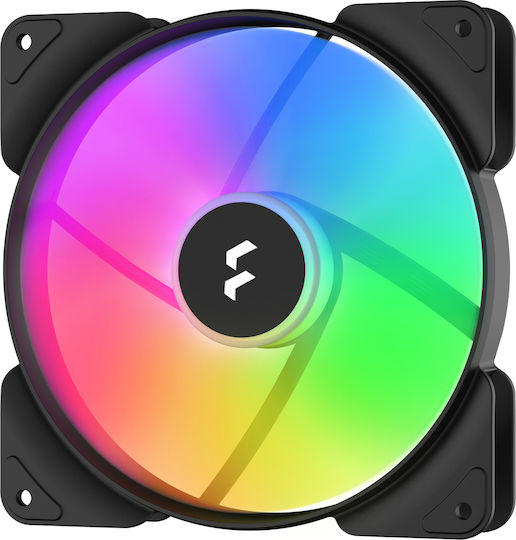

Fractal Design Aspect 14 Black Frame Case Fan 140mm (1700rpm / 78cfm) με RGB Φωτισμό και Σύνδεση 4-Pin PWM 3τμχ
Case Fans

Fractal Design Aspect 14 Black Frame Case Fan 140mm (1700rpm / 78cfm) με RGB Φωτισμό και Σύνδεση 4-Pin PWM 3τμχ

Performance

  • Suitable for: Computer case
  • Type: Fan
  • Fan diameter: 140mm
  • Rotational speed (min): 500RPM
  • Rotational speed (max): 1700RPM
  • Noise level (low speed): 10dB
  • Noise level (high speed): 35.5dB
  • ...

Performance

  • Suitable for: Computer case
  • Type: Fan
  • Fan diameter: 140mm
  • Rotational speed (min): 500RPM
  • Rotational speed (max): 1700RPM
  • Noise level (low speed): 10dB
  • Noise level (high speed): 35.5dB
  • Minimum airflow: 20cfm
  • Maximum airflow: 78cfm
  • Airflow: 132.5m³/h
  • Minimum air pressure: 0.3mmH2O
  • Maximum air pressure: 2.05mmH2O
  • Bearing type: Rifle bearing
  • ...
See full description See full description
Review the product
Product report

Description

Description

Performance

  • Suitable for: Computer case
  • Type: Fan
  • Fan diameter: 140mm
  • Rotational speed (min): 500RPM
  • Rotational speed (max): 1700RPM
  • Noise level (low speed): 10dB
  • Noise level (high speed): 35.5dB
  • Minimum airflow: 20cfm
  • Maximum airflow: 78cfm
  • Airflow: 132.5m³/h
  • Minimum air pressure: 0.3mmH2O
  • Maximum air pressure: 2.05mmH2O
  • Bearing type: Rifle bearing
  • Quantity per package: 3 pieces
  • MTBF rate: 90000h

Design

  • Product color: Black
  • Number of fans: 3 fan(s)
  • Number of fan blades: 7
  • Lighting: LED - YES
  • Lighting color: Multi
  • Fan connector: 4-pin

Power Management

  • Power consumption: 2.16W
  • Voltage: 12V
  • Rated voltage: 5V
  • Starting voltage: 7V
  • Voltage (max): 0.24A

Weight and Dimensions

  • Weight: 155g
  • Fan dimensions (W x D x H): 140 x 140 x 25mm
  • Cable length: 0.5m
  • Package width: 143mm
  • Package depth: 212mm
  • Package height: 87mm
  • Package weight: 471g

Package Contents

  • Screws included: YES
  • Number of screws: 12

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Dimension
140 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
Black
Packaging
3 pcs

Technical Specifications

Fan Speed (Max)
1700 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
35.5 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
78 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.

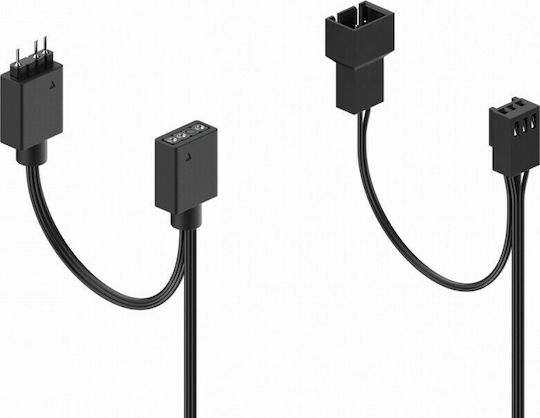

Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
RGB
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
2.05 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Performance

  • Suitable for: Computer case
  • Type: Fan
  • Fan diameter: 140mm
  • Rotational speed (min): 500RPM
  • Rotational speed (max): 1700RPM
  • Noise level (low speed): 10dB
  • Noise level (high speed): 35.5dB
  • Minimum airflow: 20cfm
  • Maximum airflow: 78cfm
  • Airflow: 132.5m³/h
  • Minimum air pressure: 0.3mmH2O
  • Maximum air pressure: 2.05mmH2O
  • Bearing type: Rifle bearing
  • Quantity per package: 3 pieces
  • MTBF rate: 90000h

Design

  • Product color: Black
  • Number of fans: 3 fan(s)
  • Number of fan blades: 7
  • Lighting: LED - YES
  • Lighting color: Multi
  • Fan connector: 4-pin

Power Management

  • Power consumption: 2.16W
  • Voltage: 12V
  • Rated voltage: 5V
  • Starting voltage: 7V
  • Voltage (max): 0.24A

Weight and Dimensions

  • Weight: 155g
  • Fan dimensions (W x D x H): 140 x 140 x 25mm
  • Cable length: 0.5m
  • Package width: 143mm
  • Package depth: 212mm
  • Package height: 87mm
  • Package weight: 471g

Package Contents

  • Screws included: YES
  • Number of screws: 12

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Dimension
140 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
Black
Packaging
3 pcs

Technical Specifications

Fan Speed (Max)
1700 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
35.5 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
78 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
RGB
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
2.05 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
