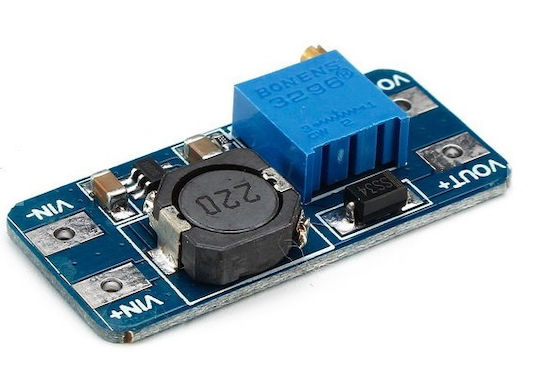

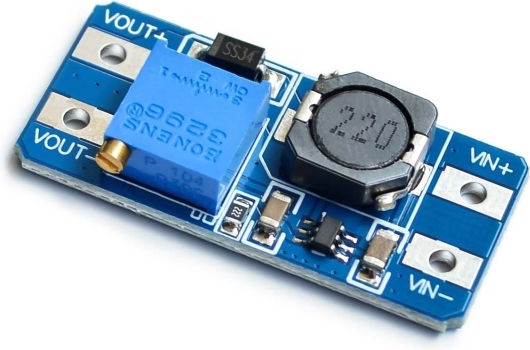

Converter DC/DC Step-Up with Input Voltage 2-24V and Output Voltage 5-28V 2A (MT3608)
Microelectronic Converter Modules

Converter DC/DC Step-Up with Input Voltage 2-24V and Output Voltage 5-28V 2A (MT3608)

The MT3608 DC-DC Boost module is based on the high-efficiency 1.2 MHz 2 Ampere MT3608 converter. The MT3608 features automatic transition to pulse frequency modulation mode at light loads. The MT3608...

The MT3608 DC-DC Boost module is based on the high-efficiency 1.2 MHz 2 Ampere MT3608 converter. The MT3608 features automatic transition to pulse frequency modulation mode at light loads. The MT3608 includes undervoltage lockout, current limiting, and thermal overload protection to prevent damage in case of output overload.

See full description
1 32 €
Delivery by Thu, 25 Jun
14,00 €   shipping cost
Sent from Greece
From ZepLabs
Greece
15 pieces
See Microelectronics on the page of ZepLabs
Product report

Description

Description

The MT3608 DC-DC Boost module is based on the high-efficiency 1.2 MHz 2 Ampere MT3608 converter. The MT3608 features automatic transition to pulse frequency modulation mode at light loads. The MT3608 includes undervoltage lockout, current limiting, and thermal overload protection to prevent damage in case of output overload.

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Step-Up
Power Module
DC/DC
Minimum Input Voltage
2 V
Maximum Input Voltage
24 V
Minimum Output Voltage
5 V
Maximum Output Voltage
28 V
Maximum Output Current
2 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (10)

Reviews

3.7
10
3.7
Review this product
  1. 5
  2. 1
  3. 2
  4. 2 stars
    0
  5. 2
Review this product
  • Dimitris_pan75
    1
    1 out of 1 members found this review helpful
    Dimitris_pan75

    Verified purchase

    I got three. One smoked. The others easily reached 12v when there was no load. With a load of three LED bulbs, totaling 3w, it couldn't raise the voltage at all.

    Translated from Greek ·
    Did you find this review helpful?
  • vaggelisdagounakis
    3
    1 out of 1 members found this review helpful
    vaggelisdagounakis

    Verified purchase

    Special attention, it claims to withstand 2A but not even close, at most it can handle up to 1.5A and then it starts to have issues. I bought 3, only one managed to withstand a continuous 2A and after several uses, it also gave out. It works fine at lower amperage.

    Translated from Greek ·
    Did you find this review helpful?
  • xenofonlabiris
    4
    xenofonlabiris
    Expert user

    Verified purchase

    Very good but very small in size. Two of them burned out due to size (my fault).

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    1 out of 1 members found this review helpful
    polymar3d

    Verified purchase

    I bought it for a project in my aquarium. It works flawlessly day and night for 4 months a year.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Petros_Protogeros

    Verified purchase

    Small and reliable, it heats up very little for small constructions, it is just what I need.

    Translated from Greek ·
    Did you find this review helpful?
  • 1
    1 out of 1 members found this review helpful
    thanos_lp

    It worked for 2 minutes...

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Panagiotis_Fountopoulos

    Verified purchase

  • 5
    Giorgos_Zalokostas

    Verified purchase

  • 5
    vagelis.p

    Verified purchase

  • 3
    djkostas1

    Verified purchase

  • Dimitris_pan75
    1
    Dimitris_pan75

    I got three. One smoked. The others easily reached 12v when there was no load. With a load of three LED bulbs, totaling 3w, it couldn't raise the voltage at all.

    Translated from Greek ·
    1
  • vaggelisdagounakis
    3
    vaggelisdagounakis

    Special attention, it claims to withstand 2A but not even close, at most it can handle up to 1.5A and then it starts to have issues. I bought 3, only one managed to withstand a continuous 2A and after several uses, it also gave out. It works fine at lower amperage.

    Translated from Greek ·
    1
  • xenofonlabiris
    4
    xenofonlabiris

    Very good but very small in size. Two of them burned out due to size (my fault).

    Translated from Greek ·
    0
  • 5
    polymar3d

    I bought it for a project in my aquarium. It works flawlessly day and night for 4 months a year.

    Translated from Greek ·
    1
  • 5
    Petros_Protogeros

    Small and reliable, it heats up very little for small constructions, it is just what I need.

    Translated from Greek ·
    0
  • See all
