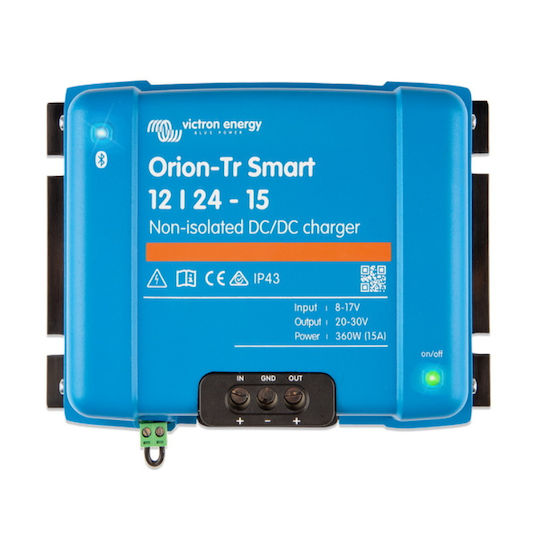

Victron Energy Orion-Tr Smart 12/24-15 Non Isolated Voltage Converter DC/DC 12V to 24V

Key features:

  • DC/DC 12V to 24V 15A 360W
  • Adjustable voltage 20–30V
  • Remote On-Off terminals
  • Parallel connection of units
  • IP43 and short-circuit protection
  • Easy screw connection
See full description
242 40 €
Delivery by Fri, 20 Nov
14,00 €   shipping cost
Sent from Greece
From Smart-Cover
Greece
1 piece
See Energy on the page of Smart-Cover

Learn more about invoicing

Description

Description

The Victron Orion-Tr Smart 12/24-15A 360W Non-Isolated voltage converter provides reliable DC-to-DC conversion from 12V to 24V. Designed with advanced features such as remote on/off, adjustable output voltage, and parallel connection capability, it offers complete flexibility and safety for specialized electrical applications.

Flexible Adjustment & Remote Control

The converter offers an input voltage range of 10–17V and a nominal output voltage of 24.2V, adjustable from 20–30V via the built-in potentiometer. The dedicated Remote terminals allow the device to be switched on or off using a low-power switch, eliminating the need for high-current switches in the input wiring.

Safety, Durability & Parallel Connection

With a rated output current of 15A and a power output of 360W, it supports the parallel connection of an unlimited number of units to increase total power. It features built-in short-circuit protection, an input fuse, IP43 protection (when installed with the terminals facing down) and screw terminals for easy installation without special tools.

Manufacturer

See full description

Specifications

Specifications

Type
DC/DC
Input Voltage
12 V
Output Voltage
24 V
Power
360 W
Output current
15 A
Type of Operation
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Victron Orion-Tr Smart 12/24-15A 360W Non-Isolated voltage converter provides reliable DC-to-DC conversion from 12V to 24V. Designed with advanced features such as remote on/off, adjustable output voltage, and parallel connection capability, it offers complete flexibility and safety for specialized electrical applications.

Flexible Adjustment & Remote Control

The converter offers an input voltage range of 10–17V and a nominal output voltage of 24.2V, adjustable from 20–30V via the built-in potentiometer. The dedicated Remote terminals allow the device to be switched on or off using a low-power switch, eliminating the need for high-current switches in the input wiring.

Safety, Durability & Parallel Connection

With a rated output current of 15A and a power output of 360W, it supports the parallel connection of an unlimited number of units to increase total power. It features built-in short-circuit protection, an input fuse, IP43 protection (when installed with the terminals facing down) and screw terminals for easy installation without special tools.

Manufacturer

Type
DC/DC
Input Voltage
12 V
Output Voltage
24 V
Power
360 W
Output current
15 A
Type of Operation
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
