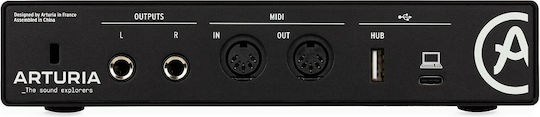

Arturia Minifuse 2 DJSCA422 Black
Commercial Sound Cards

Arturia Minifuse 2 DJSCA422 Black

  • Portable USB sound card 2 in / 2 out
  • Combo XLR / 1/4 inputs
  • Frequency response: 20Hz to 20kHz
  • Backlit controls
  • Level control
  • Instrument level switch
  • Monitoring level control
  • 48V power switch
  • Headphone output
  • Portable USB sound card 2 in / 2 out
  • Combo XLR / 1/4 inputs
  • Frequency response: 20Hz to 20kHz
  • Backlit controls
  • Level control
  • Instrument level switch
  • Monitoring level control
  • 48V power switch
  • Headphone output
  • Headphone level control
  • USB-C connection
See full description See full description
Product report

Description

Description

  • Portable USB sound card 2 in / 2 out
  • Combo XLR / 1/4 inputs
  • Frequency response: 20Hz to 20kHz
  • Backlit controls
  • Level control
  • Instrument level switch
  • Monitoring level control
  • 48V power switch
  • Headphone output
  • Headphone level control
  • USB-C connection
  • USB-A hub connection: Connect any standard USB device to the MiniFuse to save space on your computer's power outlet, including MIDI controllers
  • Output monitoring - Left and right output to connect speakers
  • MIDI DIN input/output: Send, receive, sync, and record MIDI information for synths, drum machines, sequencers, and more
  • Mix level control
  • Direct mono switch

Software package:

  • Includes: Ableton Live Lite, Analog Lag Intro, 4 x Arturia FX, 3-month Auto-Tune subscription, GUITAR RIG 6 LE, 3-month Splice subscription, and more
  • Ableton Live Lite: For recording and mixing needs
  • Analog Lab Intro: Classic and modern synthesizer with many sounds
  • 4 x Arturia FX: A world-class preamp, plate reverb, tape echo, and chorus effects
  • Auto-Tune Unlimited: 3-month subscription to the leading tuning software
  • GUITAR RIG 6 LE: For guitar amp simulation and guitar effects

Technical Specifications:

  • Sample rates: 44.1kHz, 48kHz, 88.2 kHz, 96kHz, 176.4kHz, 192 kHz
  • LINE Input impedance: 16 kΩ
  • LINE Max input level: +22dBu
  • LINE Gain range: 56dB
  • LINE Frequency response 20Hz to 20kHz
  • LINE Dynamic range 110dB typical (A-weighted)
  • LINE THD+N @ 1kHz: -100dB typical (un-weighted)
  • INSTRUMENT Input impedance: 1MΩ on Tip
  • INSTRUMENT Maximum input level: +11.5dBu
  • INSTRUMENT Gain range: 56dB
  • INSTRUMENT Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
  • INSTRUMENT Dynamic range: 110dB typical (A-weighted)
  • INSTRUMENT THD+N @ 1kHz: -91dB typical (un-weighted)
  • MICROPHONE PREAMPS Input impedance: 2.5kΩ
  • MICROPHONE PREAMPS Maximum input level: +9dBu
  • MICROPHONE PREAMPS Gain range: 56dB
  • MICROPHONE PREAMPS Equivalent Input Noise (EIN): -129dB typical (A-weighted)
  • MICROPHONE PREAMPS Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
  • MICROPHONE PREAMPS Dynamic range: 110dB typical (A-weighted)
  • MICROPHONE PREAMPS THD+N @ 1kHz: -100dB typical (un-weighted)
  • SPEAKERS Output impedance: 94Ω
  • SPEAKERS Maximum output level: +12dBu
  • SPEAKERS Frequency response 20-20kHz: +/-0.09dB
  • SPEAKERS Dynamic range: 107.5dB typical (A-weighted)
  • SPEAKERS THD+N @ 1kHz: -101dB typical (un-weighted)
  • PHONES Output impedance: 10Ω
  • PHONES Maximum output level: +11.4dBu
  • PHONES Frequency response 20-20kHz: +/-0.09dB
  • PHONES Dynamic range: 104dB typical (A-weighted)
  • PHONES Power @ 33ohm: 137mW
  • Color: Black
  • Dimensions: 200 x 100 x 43 mm / 7.9 x 3.9 x 1.65 "
  • Weight: 431 Kg / 1.1 lbs.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Connectivity

PC Connectivity
USB

Dimensions

Card Type
External
Phantom Power
Yes

Phantom Power

It is a way to power devices such as condenser microphones with a simple cable (usually XLR) and avoid the use of batteries or external power supplies.
MIDI
Yes

MIDI

It is a protocol designed for recording and playing music on digital synthesizers. Using a software sequencer, you can create music on your computer.
Loopback
-
Auto Gain
-
Clip Safe
-
Colour
Black

Audio Ports

XLR Input
2
Headphones
Yes
6.3mm Input
2
6.3mm Output
2
3.5mm
No
RCA
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
