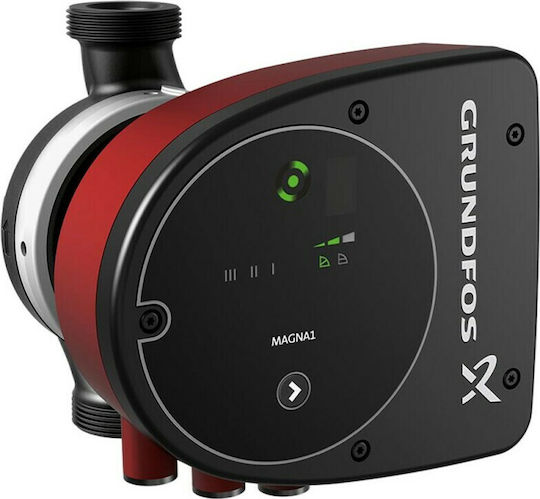

Grundfos Magna1 Electronic 25/8 Circulator Pump Heating / Air Condition 180mm
Circulator Pumps

Grundfos Magna1 Electronic 25/8 Circulator Pump Heating / Air Condition 180mm Code: 99221213

The Grundfos MAGNA1 25/8 electronic heating and air-conditioning circulator supports remote control via a digital start/stop input and wireless communication with the Grundfos GO Remote app. The fault...

The Grundfos MAGNA1 25/8 electronic heating and air-conditioning circulator supports remote control via a digital start/stop input and wireless communication with the Grundfos GO Remote app. The fault relay output allows pump monitoring. It features a maintenance-free design and intuitive operation.

  • Type: Electronic heating and air-conditioning circulator
  • ...
See full description See full description

Maximum pressure head (m)

  1. 8 m

    from 1.008,90 €

  2. 10 m

    from 1.113,90 €

Connection diameter

  1. 25 mm

    from 1.008,90 €

  2. 32 mm

    from 795,00 €

Learn more about invoicing
Review the product
Product report

Description

Description

The Grundfos MAGNA1 25/8 electronic heating and air-conditioning circulator supports remote control via a digital start/stop input and wireless communication with the Grundfos GO Remote app. The fault relay output allows pump monitoring. It features a maintenance-free design and intuitive operation.

  • Type: Electronic heating and air-conditioning circulator
  • Maximum head: 8 m
  • Connection diameter: 25 mm
  • Length: 180 mm
  • Power: 9–128 W
  • Voltage: 230 V
  • Frequency: 50 / 60 Hz
  • Maximum operating pressure: 10 bar
  • Maximum flow rate: 8.5 m³/h
  • Port connection: 1 1/2" union
  • Pump housing: Cast iron
  • Impeller: Composite material
  • Fluid temperature: From -10 °C to +110 °C

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
99221213

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Air Conditioning, Heating

Application

Air Conditioning
This concerns closed circuit installations for hot and cold water.
Heating
It concerns installations of closed circuit hot and cold water.
Maximum Pressure Head (m)
8 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
25 mm
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Grundfos MAGNA1 25/8 electronic heating and air-conditioning circulator supports remote control via a digital start/stop input and wireless communication with the Grundfos GO Remote app. The fault relay output allows pump monitoring. It features a maintenance-free design and intuitive operation.

  • Type: Electronic heating and air-conditioning circulator
  • Maximum head: 8 m
  • Connection diameter: 25 mm
  • Length: 180 mm
  • Power: 9–128 W
  • Voltage: 230 V
  • Frequency: 50 / 60 Hz
  • Maximum operating pressure: 10 bar
  • Maximum flow rate: 8.5 m³/h
  • Port connection: 1 1/2" union
  • Pump housing: Cast iron
  • Impeller: Composite material
  • Fluid temperature: From -10 °C to +110 °C

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
99221213

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Air Conditioning, Heating

Application

Air Conditioning
This concerns closed circuit installations for hot and cold water.
Heating
It concerns installations of closed circuit hot and cold water.
Maximum Pressure Head (m)
8 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
25 mm
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
