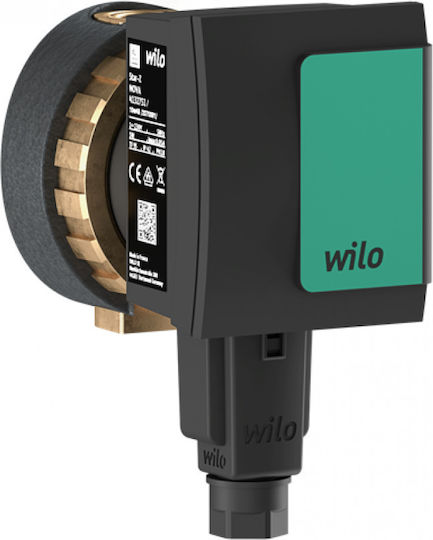

Wilo Star-Z-Nova Electronic 15/0.9 Circulator Pump Hot Water Recirculation 84mm
Circulator Pumps

Wilo Star-Z-Nova Electronic 15/0.9 Circulator Pump Hot Water Recirculation 84mm Code: 4132760

  • Pump for integration into piping, resistant to lock-in current, modern motor with high starting torque.
  • Brass pump housing, stainless steel impeller, stainless steel shaft.
  • Used for drinking water...
  • Pump for integration into piping, resistant to lock-in current, modern motor with high starting torque.
  • Brass pump housing, stainless steel impeller, stainless steel shaft.
  • Used for drinking water applications with water hardness up to 20 °dH.
  • Power consumption 2 – 4.5 W.
  • Delivered from the factory with thermal insulation shell, housing thread Rp .
  • Construction...
See full description See full description
Product report

Description

Description

  • Pump for integration into piping, resistant to lock-in current, modern motor with high starting torque.
  • Brass pump housing, stainless steel impeller, stainless steel shaft.
  • Used for drinking water applications with water hardness up to 20 °dH.
  • Power consumption 2 – 4.5 W.
  • Delivered from the factory with thermal insulation shell, housing thread Rp ½.
  • Construction length: 84 mm
  • Electrical network connection: 1~230 V, 50 Hz
  • Number of revolutions: 3000 1/min
  • Nominal motor power: 0.9 W
  • Power consumption 1~230 V: 2 – 4.5 W
  • Current at 1~230V: 0.05 A
  • Motor protection: not required (resistant to blocking)
  • Cable gland: 11

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
4132760

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Hot Water Recirculation

Application

Hot Water Recirculation
The circulator provides a ready flow of hot water for use, and is considered an energy-intensive operation.
Maximum Pressure Head (m)
0.9 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
15 mm
Length
84 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

1.0
1
1.0
Review this product
  1. 5 stars
    0
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1
Review this product

Description & Specifications

  • Pump for integration into piping, resistant to lock-in current, modern motor with high starting torque.
  • Brass pump housing, stainless steel impeller, stainless steel shaft.
  • Used for drinking water applications with water hardness up to 20 °dH.
  • Power consumption 2 – 4.5 W.
  • Delivered from the factory with thermal insulation shell, housing thread Rp ½.
  • Construction length: 84 mm
  • Electrical network connection: 1~230 V, 50 Hz
  • Number of revolutions: 3000 1/min
  • Nominal motor power: 0.9 W
  • Power consumption 1~230 V: 2 – 4.5 W
  • Current at 1~230V: 0.05 A
  • Motor protection: not required (resistant to blocking)
  • Cable gland: 11

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
4132760

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Hot Water Recirculation

Application

Hot Water Recirculation
The circulator provides a ready flow of hot water for use, and is considered an energy-intensive operation.
Maximum Pressure Head (m)
0.9 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
15 mm
Length
84 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
