Dewalt Plunge Circular Saw 1300W with Speed Control and with Dust Extraction System
Circular Saws

Dewalt Plunge Circular Saw 1300W with Speed Control and with Dust Extraction System

Key features:

  • Power: 1300 W
  • Bevel Capacity: 47°
  • Cutting Capacity (45°): 44 mm
  • Cutting Capacity (90°): 59 mm
  • Motor Speed: 4000 rpm
See full description
  • Maximum Motor Speed 4000 rpm
  • Speed Setting

  • Dust Extraction System

    1

    Used for collecting residues during the operation of the tool.
  • Cutting capacity (90°) 59 mm
  • Cutting capacity (45°) 44 mm
  • Bevel Cutting Capacity 47 °
  • See all
Product report

Description

Description

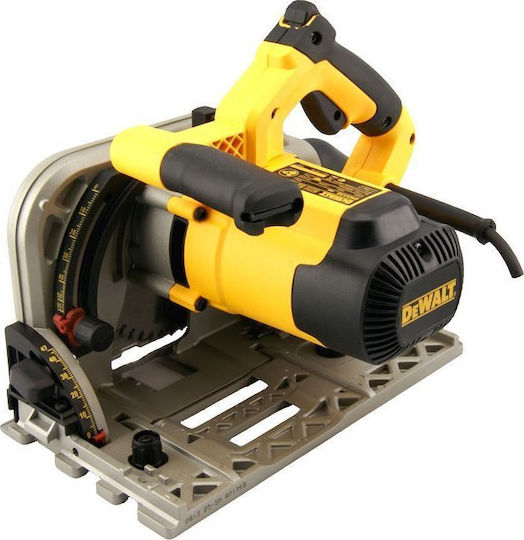

DEWALT DWS520KR Plunge Circular Saw

Capable of precise cuts with the parallel plunge that allows the user to maintain a steady hand position during cutting. It features a 48-tooth blade that provides precision finishing with very minimal surface chipping on melamines. The parallel cutting guide ensures the correct adjustment of the tool on the guide rail.

The anti-kickback function prevents the tool from moving backward, keeping the tool's position on the rail and within the material during the plunge. The variable speed allows for adjusting the RPM for cutting various materials.

The electronic speed control provides consistent RPM when the tool is under heavy load. The guard provides 90% dust extraction capability. With a cutting depth of 55 mm, it allows work on the most common door sizes.

  • Technical Specifications:
  • Input power: 1300 Watts
  • Output power: 690 Watts
  • No-load speed: 1750 - 4000 RPM
  • Blade diameter: 165 mm

Features & Functions

  • The parallel guide system of the plunge saw keeps the user's hand in a comfortable position during cutting.
  • The included 48-tooth saw blade provides a fine and precise finish with minimal or no wear on laminate.
  • Control system for very precise adjustment of the machine in relation to the guide rail.
  • The anti-kickback function prevents the machine from moving backward on the guide or coming out of the workpiece during cutting.
  • The saw blade speed can be adjusted according to the type of material.
  • The full-wave electronic control maintains a constant speed under heavy and varying loads.
  • Closed protective cover allows up to 90% of sawdust to be collected with a dust extractor.
  • The cutting depth up to 55 mm is sufficient for common door sizes.

Specifications

  • Power consumption: 1300W
  • Output power: 690W
  • No-load speed: 1750 - 4000 rpm
  • Saw blade diameter: 165 mm
  • Saw blade bore: 20 mm
  • Bevel capacity: 47°
  • Cutting depth at 90°: 59 mm
  • Cutting depth at 90° - with guide: 55 mm
  • Cutting depth at 45°: 44 mm
  • Cutting depth at 45° - with guide: 40 mm
  • Dimensions (length x height): 303 x 265 mm
  • Weight: 5.1 kg

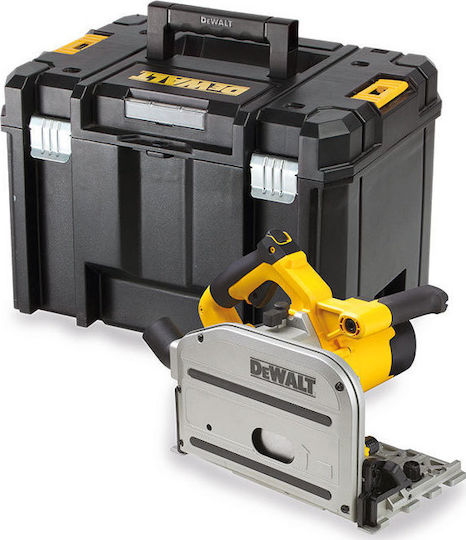

Includes

  • 1x plunge saw (DWS520KTR)
  • Guide (1.5 meters, DWSS5022)
  • 1x precision carbide blade (48T)
  • 1x TSTAK tool case

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Power Source
Electric
Rail
Yes
Guide
No
Carrying Case
Hard Case

Battery Specifications

Lithium
No

Current Specifications

Power
1300 W

Features & Functions

Maximum Motor Speed
4000 rpm
Speed Adjustment
Yes
Dust Suction System
Yes

Dust Suction System


Used for collecting residues during the operation of the tool.
Saw Blade Hole Diameter
20 mm
Saw Blade Diameter
165 mm
Max. Wood Cutting Capacity (90°)
59 mm
Max. Wood Cutting Capacity (45°)
44 mm
Miter Capability
47 °
Plunge Saw
Yes

Plunge Saw


A different design circular saw, without a protective guard, that can be submerged at any point on the cutting surface.
Brushless
No
Net Weight
5.1 kg

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
