Dimensions

Mode of Operation

Condenser (Small Diaphragm)

Mode of Operation

Condenser (Small Diaphragm)

Very accurate and fast in response. Suitable for instruments with detail and high frequencies (acoustic guitar, piano, overheads).

Directivity

Unidirectional (Cardioid)

Directivity

Unidirectional (Cardioid)

Cardioid: Captures sound primarily from the front, reducing sounds from the sides and rear. Ideal for vocals, podcasting, and live recordings.

Frequency

30 - 20000 Hz

Frequency

Indicates the frequency range that a microphone can capture and is expressed in Hertz (Hz). The more balanced the range, the more natural and clear the sound.

Usage examples:

• 100 – 10,000 Hz to 200 – 12,000 Hz: Emphasis on speech intelligibility, with limited low and very high frequencies.
• 50 – 14,000 Hz to 80 – 16,000 Hz: Balance of volume and clarity. Ideal for live performances and dynamic microphones.
• 40 – 15,000 Hz to 50 – 18,000 Hz: Rich, natural vocal sound. Suitable for podcasts, radio, and streaming.
• 20 – 18,000 Hz to 20 – 20,000 Hz: Full spectrum with high detail and "air". Ideal for studio recording.
• Below 20 Hz & above 20,000 Hz: Extended technical range for specialized studio applications.

Impendance

200 ohm

Impendance

Indicates how "easily" the microphone transmits its signal to the equipment (mixer, sound card, amplifier). It is expressed in Ohms (Ω).

• Low impedance (≤ 600 Ω): Stable signal, less noise, ideal for professional equipment and long cable runs.
• Medium impedance (600 – 1,000 Ω): Good balance, common in live and general use.
• High impedance (> 1,000 Ω): More sensitive to loss and noise, usually found in older or specialized equipment.

Sensitivity

10 mV/Pa

Sensitivity

The sensitivity of a microphone indicates how strong the signal it produces is when recording a sound. It is measured in mV/Pa or dBV/Pa.

• High sensitivity: The microphone can capture very low sounds, but it may be more sensitive to ambient noise.
• Low sensitivity: It records louder sound sources without distortion, but requires more amplification from the preamp.

In general, condenser microphones have higher sensitivity than dynamic ones.

Max SPL

134 dB

Max SPL

Max SPL (Maximum Sound Pressure Level) is the maximum sound pressure level (in dB) that a microphone can withstand before it starts to distort the sound.

• High Max SPL (e.g., 140-160dB): Ideal for recording loud sources such as drums, amplified guitar, or live concerts.
• Lower Max SPL (e.g., 120dB): Suitable for vocals and softer recordings.

The higher the Max SPL, the louder the sounds it can capture without distortion.

Connectivity

XLR

General Characteristics

Device Group

Vocal, Musical Instruments, Studio

Vintage

No

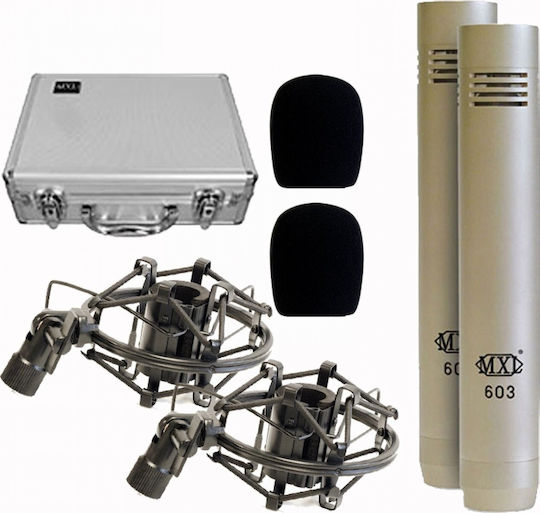

Set

Yes

Color

Silver
