Description
Specifications

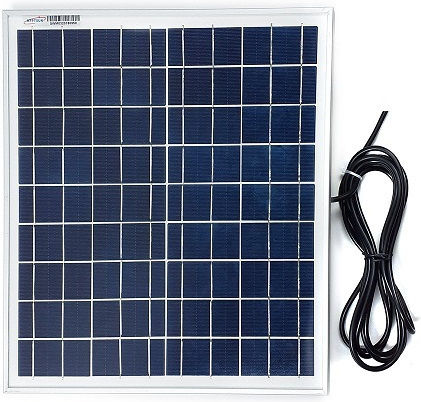

Technical specifications of the 20W PV collector:
Consists of 2 collectors connected in series
- Nominal Power (Pmax): 20Wp
- Open Circuit Voltage (Voc): 22.30V
- Maximum Voltage (Vmp): 18.68V
- Short Circuit Current (Isc): 1.18A
- Maximum Current (Imp): 1.07A
- Polycrystalline collector
- Cable: 4 m
- Dimensions: 39.5 x 34.5 x 1.7 cm
- Weight: 2 kg
- Warranty: 10 years
Technical specifications of the regulator:
- Maximum Charging Current from PV collector: 10A
- System Voltage: 12 / 24 V
- Automatic system voltage recognition
- LED indicators for monitoring the charging status
- Numerical indicators for the connection sequence with the battery, collectors, and load
- Dimensions: 35 x 72 x 150 mm
- Weight: 130g
- Waterproof: IP32
- Maximum connecting cable cross-section: 2.5 mm
- Warranty: 1 year
Manufacturer
OEM- Charging
- Rechargeable Batteries
- Maximum Power
- 20 W
- Maximum Voltage
- 24 V
- Foldable
- No
- USB
- No
