Technical specifications LT2-E:

• Nominal current: 0.10 to 93A
• Rated operating voltage: up to 690V AC; 50/60Hz
• Insulation voltage: >690V
• Impulse voltage withstand: 6000V
• Mechanical wear resistance (number of cycles): ≥10000000
• Electrical wear resistance (number of cycles): ≥1000000
• Ambient temperature: -10° to 65ºC
• Maximum altitude: up to 2000m

Advantages:

• Indicator for activation of protection
• Selection of protection restoration method
• Ability to adjust the operating range
• Capability to operate at higher frequency
• High reliability of current parameters
• Increased efficiency and extended service life

Functions:

• For protecting inductive motors from overload or overheating
• To prevent motor operation in unusual temperature conditions

Uses:

• Industry
• Building construction

Support: At the terminals of the contactor and additionally connected to the frame via a pin

Specification: EN60947-1; EN60947-4-1; LVD; EMC

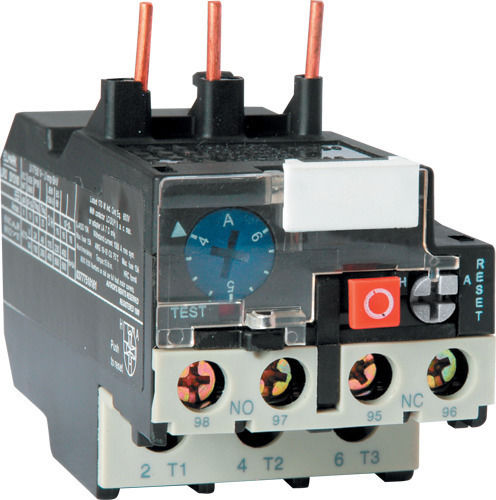

Model: LT2-Exx

Brand: ELMARK

Relay type: D

Protection adjustment range: 9-13A
