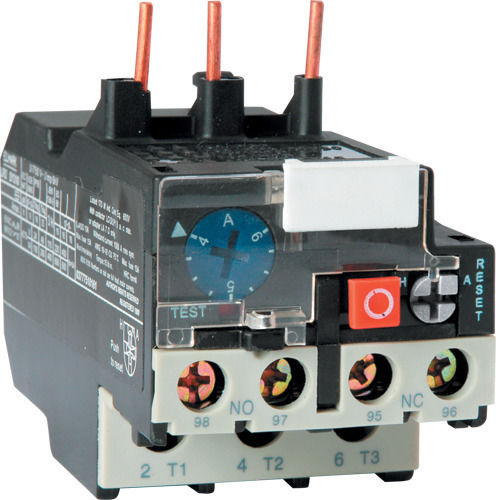

Technical specifications LT2-E:

• Rated operating current: 0.10 to 93A
• Rated operating voltage: up to 690V AC; 50/60Hz
• Insulation voltage: >690V
• Surge voltage withstand: 6000V
• Mechanical wear resistance (number of cycles): ≥10000000
• Electrical wear resistance (number of cycles): ≥1000000
• Ambient temperature: -10° to 65ºC
• Maximum altitude: up to 2000m

Advantages:

• Protection activation indication
• Selection of protection recovery method
• Allows adjustment of operating range
• Enables operation at higher frequency
• High reliability of current parameters
• Increases efficiency and extends operational life

Functions:

• For protecting electric motors from overload or overheating
• To prevent motor operation at unusual temperatures

Applications:

• Industry
• Building construction

Installation method: On the terminals of the contact, and additionally tightened to the frame via a pin.

Standards: EN60947-1; EN60947-4-1; LVD; EMC

Type: E1

Category: E1411

Rated current: 6A

Brand: ELMARK

Relay type: D

Protection adjustment range: 4-6A

Model: LT2-Exx
