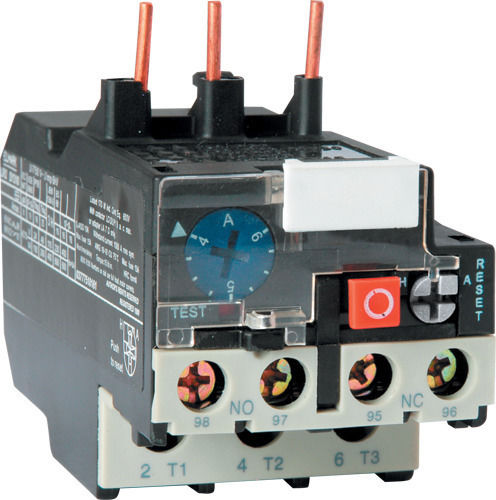

Technical specifications LT2-E:
- Rated operating current: 0.10 to 93A
- Rated operating voltage: up to 690V AC; 50/60Hz
- Insulation voltage: >690V
- Pulse withstand: 6000V
- Mechanical wear resistance (number of cycles): ≥10000000
- Electrical wear resistance (number of cycles): ≥1000000
- Ambient temperature: -10° to 65ºC
- Maximum height: up to 2000m
Advantages:
- Indication of protection activation
- Selection of protection restoration method
- Ability to adjust the operating range
- Ability to operate at higher frequency
- High reliability of current parameters
- Increased efficiency and extended operating time
Functions:
- For protecting electric motors from overload or overheating
- To prevent motor operation under unusual temperature conditions
Applications:
- Industry
- Building construction
Installation: On the terminals of the contactor and additionally secured to the frame via a pin.
Standards: EN60947-1; EN60947-4-1; LVD; EMC
