Technical Specifications LT2-E:

• Rated operating current: 0.10 to 93A
• Rated operating voltage: up to 690V AC; 50/60Hz
• Insulation voltage: >690V
• Impulse withstand voltage: 6000V
• Mechanical wear resistance (number of cycles): ≥10000000
• Electrical wear resistance (number of cycles): ≥1000000
• Ambient temperature: -10° to 65ºC
• Maximum altitude: up to 2000m

Advantages:

• Indicator for activation of protection
• Selection of protection recovery method
• Allows adjustment of operating range
• Enables operation at higher frequency
• High reliability of current parameters
• Increases efficiency and extends lifespan

Functions:

• For protecting electrical servomotors from overload or overheating
• To prevent the motor from operating in unusual temperature conditions

Applications:

• Industry
• Building construction

Mounting: At the terminals of the contacts and additionally secured to the switch frame via a passage.

Standards: EN60947-1; EN60947-4-1; LVD; EMC

Brand: ELMARK

Relay type: D

Protection adjustment range: 1.6-2.5A

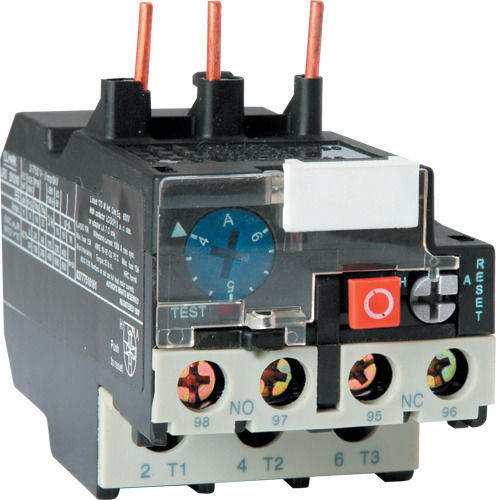

Model: LT2-Exx
