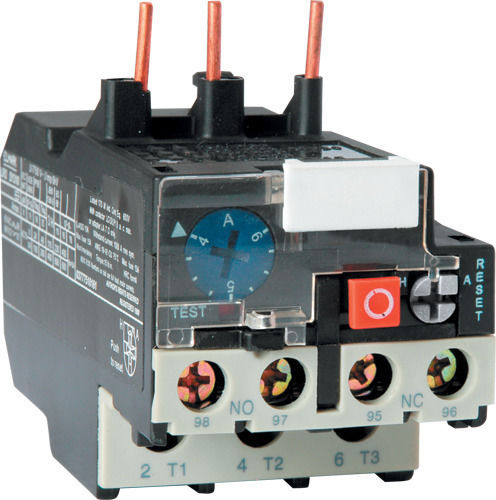

Technical Specifications LT2-E:

• Rated operating current: 0.10 to 93A
• Rated operating voltage: up to 690V AC; 50/60Hz
• Insulation voltage: >690V
• Impulse voltage withstand: 6000V
• Mechanical wear durability (number of cycles): ≥10000000
• Electrical wear durability (number of cycles): ≥1000000
• Ambient temperature: -10° to 65ºC
• Maximum altitude: up to 2000m

Advantages:

• Indication of activation protection
• Selection of protection recovery method
• Adjustable operating range
• Ability to operate at higher frequency
• High reliability of current parameters
• Increased efficiency and extended service life

Functions:

• For protecting induction motors from overload or overheating
• To prevent motor operation at unusual temperatures

Applications:

• Industry
• Building construction

Installation: On the terminals of the contactor and additionally secured to the frame via a plate.

Standard: EN60947-1; EN60947-4-1; LVD; EMC

Rated Current: 8A

Brand: ELMARK

Relay Type: D

Protection Setting Range: 5.5-8A

Model: LT2-Exx
