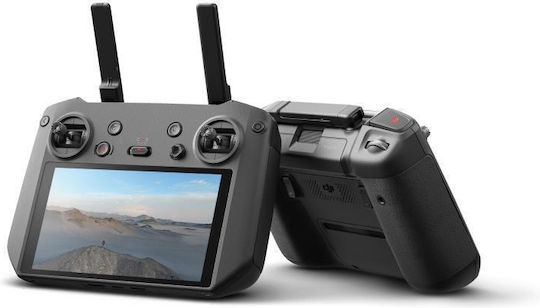

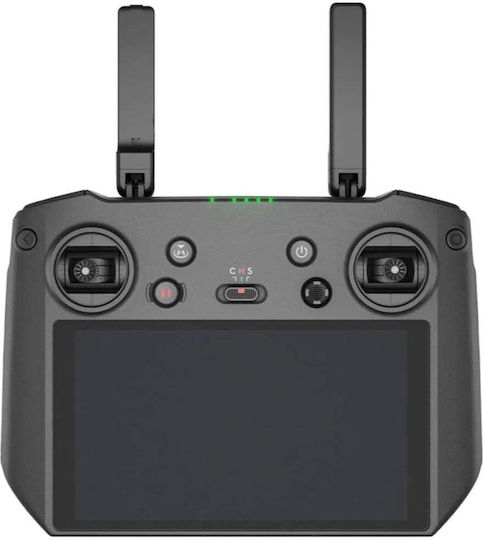

The DJI RC Pro remote controller uses the O3+ video transmission system to stream 1080p/60FPS video live over distances of up to 15 km, with a latency of approximately 120 ms. The 5.5-inch touchscreen has a resolution of 1920 × 1080 and a brightness of up to 1,000 nits, and supports 4K/120FPS video playback with H.264 and H.265 codecs. The precision control sticks support smooth maneuvers, and the remote controller is compatible with the DJI Mavic 3.
It supports Wi-Fi 6, live streaming via third-party apps, and downloading photos and videos from the drone at speeds of up to 80 MB/s. The 5,000 mAh Li-ion battery provides up to 3 hours of operating time. Charging takes approximately 2 hours via USB 12 V or 1.5 hours via USB 15 V.
- Video transmission system: O3+
- Maximum transmission distance: 8 km (CE/SRRC/MIC), 15 km (FCC)
- Display: 5.5-inch, 1920 × 1080, up to 1,000 nits, 10-point touch
- Video playback: 4K/120FPS, H.264 and H.265
- Wi-Fi: 6, 802.11a/g/n/ac/ax, 2×2 MIMO
- Bluetooth: Bluetooth 5.1, ≤8 dbm
- Operating frequencies: 2.400–2.4835 GHz, 5.725–5.850 GHz
- Antennas: 4, 2T4R
- Ports: USB-C, mini-HDMI
- Card slot: microSD
- Internal storage: 32 GB
- Battery: Li-ion, 5,000 mAh, 7.2 V
- Rated power: 12 W
- Operating time: up to 3 hours
- Charging time: approximately 2 hours via USB 12 V or 1.5 hours via USB 15 V
- Operating temperature: -10 °C to 40 °C
- Charging temperature: 5 °C to 40 °C
- GNSS: GPS, Galileo, GLONASS
- Dimensions with antennas folded and control sticks removed: 183.27 × 137.41 × 47.6 mm
- Dimensions with antennas unfolded and control sticks attached: 183.27 × 203.35 × 59.84 mm
- Weight: approximately 680 g
Dimensions
- with Screen
- Yes
- Scope
- -
Compatibility
- DJI Compatibility
- Mavic 3
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
