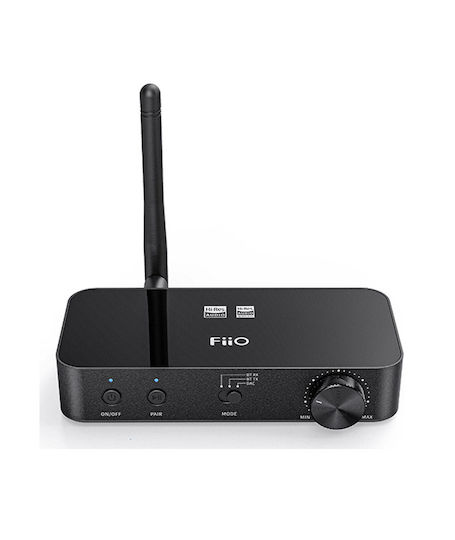

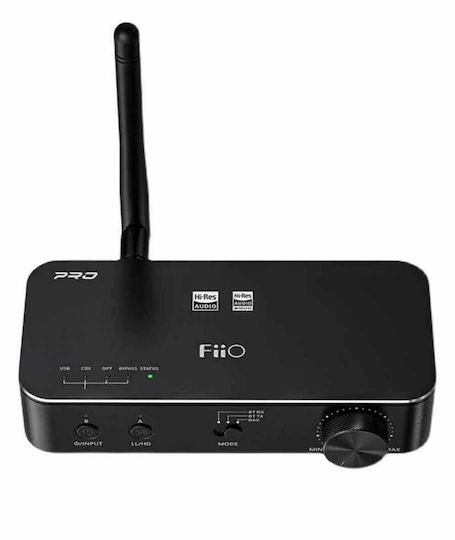

The FiiO BTA30 Pro Bluetooth transceiver functions as both an RX receiver and a TX transmitter, and can also be used as a DAC. It supports AAC, SBC, aptX, aptX HD and LDAC codecs for wireless audio transmission and reception. The ESS ES9038Q2M DAC and Qualcomm CSR8675 Bluetooth processor work with an XMOS USB receiver to deliver high-resolution audio playback.
Digital inputs include USB, coaxial and optical SPDIF. Bypass mode allows the input and output to be used simultaneously, while the active input source can be changed using the Input button. The output can be set to variable or fixed, and the device can also be controlled via an app.
- Type: Bluetooth receiver and transmitter
- Bluetooth version: 5.0
- Bluetooth codecs: AAC, SBC, aptX, aptX HD, LDAC
- DAC: ESS ES9038Q2M
- Bluetooth processor: Qualcomm CSR8675
- USB receiver: XMOS
- Supported USB signals: PCM up to 32 bit/384 kHz and native DSD256
- Inputs: Bluetooth, USB, coaxial SPDIF, optical SPDIF

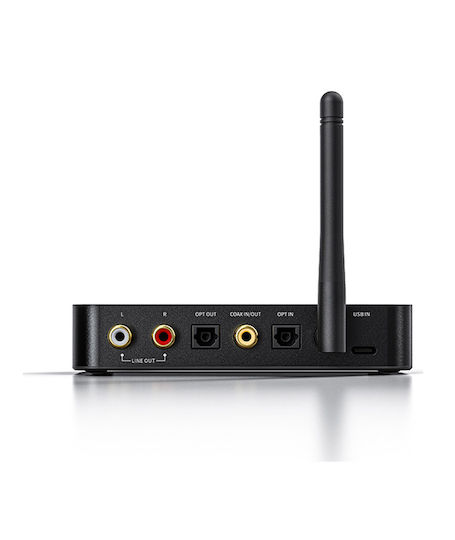

- Outputs: 3.5 mm jack, optical, RCA
- Bypass mode: Simultaneous use of input and output
- Output setting: Variable or fixed
- Controls: App and input selection button
- Maximum output level: 3 Vrms (10 kΩ)
- Noise: ≤3.8 μV (A-weighted)
- Signal-to-noise ratio: ≥118 dB
- THD+N: 0.0008% (USB DAC, 1 kHz)
- SINAD: 102 dB (USB IN)
- Dynamic range: 112 dB
- Indicator light: RGB
- Output
- 3.5mm Jack, Optical, RCA
- Bluetooth Version
- 5
- Microphone
- No
- NFC
- No
- Transmitter
- Yes
