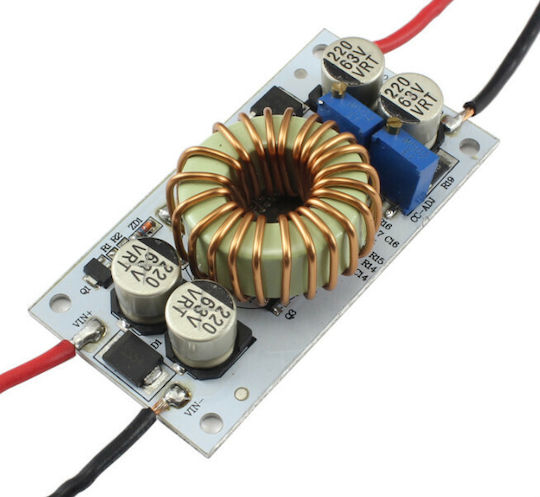

250W DC-DC Boost Converter Module, adjustable DC8.5V-48V to 10-50V, 10A. The module uses an imported power management chip design, with high reliability and small size (length 70MM * width 36MM * height 13MM), efficiency up to 96%, maximum power 250W.

• Module Properties:
• Non-isolated Boost Module
• Input Voltage: DC 8.5V-48V
• Input Current: 10A (MAX.), exceeds 8A or the module temperature exceeds 60 degrees.
• Static Working Current: 10mA
• Adjustable Output Voltage: 10-50V continuously adjustable
• Output Current: 10A MAX.
• Normal Current Range: 0.2-8A
• Operating Frequency: 150KHz
• Conversion Efficiency: up to 96%
• Overcurrent Protection: Yes
• Input Reverse Polarity Protection: Yes
• Output Voltage/Current Regulation Methodology: Adjust with CV and CC regulator.
• Operating Temperature: -40 to +85 degrees
• Installation Methods: 4 holes for 3mm screws

Application Range: DIY power supply, 12V input, 12-50V output. Use it as a car power supply for laptops, PDAs, or various digital products. Voltage regulator for solar panels. Charge batteries, lithium, etc.
