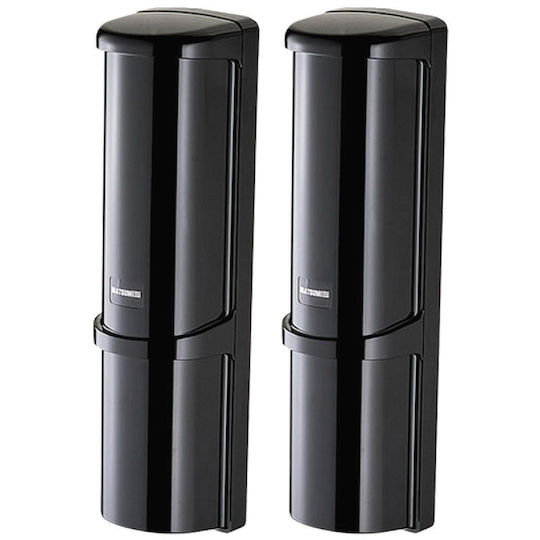

Atsumi NR120QS Wired Four Beam Detector IP54 10.5-28V Scope 110m
Beam Sensors

Atsumi NR120QS Wired Four Beam Detector IP54 10.5-28V Scope 110m

  • Detection: 4 synchronized beams for maximum protection against false alarms (fallen leaves, small animals crossing).
  • Range: 110 meters outdoors.
  • EDC Technology (Environmental Discrimination Circuit):...
  • Detection: 4 synchronized beams for maximum protection against false alarms (fallen leaves, small animals crossing).
  • Range: 110 meters outdoors.
  • EDC Technology (Environmental Discrimination Circuit): Intelligent environmental management that rejects false alarms caused by fog or snow and notifies in case of malfunction.
  • Beam Power Control: Adjustable to prevent...
See full description See full description

  • Login

    Wired

    It connects to the installation system with a cable and is powered through it.

  • Number of Beams

    The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.

  • Range

    The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.

  • Operating Voltage

    It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.

  • Protection Certification

    IP54

    Suitable for indoor or outdoor areas with limited dust. Provides protection against the ingress of objects and withstands light rain or water splashes.
  • See all
Review the product
Product report

Description

Description

  • Detection: 4 synchronized beams for maximum protection against false alarms (fallen leaves, small animals crossing).
  • Range: 110 meters outdoors.
  • EDC Technology (Environmental Discrimination Circuit): Intelligent environmental management that rejects false alarms caused by fog or snow and notifies in case of malfunction.
  • Beam Power Control: Adjustable to prevent reflections on white surfaces or interference from nearby beams.
  • Easy Adjustment: Special voltage measurement output for precise and quick alignment during installation.
  • Response Time: Adjustable from 50 to 500 milliseconds depending on the space's needs.
  • Relay Outputs: Three (3) independent outputs:
  • Alarm
  • EDC (Environmental Signal/Issue)
  • Tamper (Tamper Protection)
  • Construction: High-quality plastic and metal with IP54 ingress protection rating.
  • Power Supply: 10.5 to 28V DC.
  • Operating Temperature: Resistant to extreme conditions from -25°C to +70°C.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
110 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
4 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Operating Voltage
10.5-28V

Operating Voltage

It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.
Protection Certification
IP54

Protection Certification

IP54
Suitable for indoor or outdoor areas with limited dust. Provides protection against the ingress of objects and withstands light rain or water splashes.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

  • Detection: 4 synchronized beams for maximum protection against false alarms (fallen leaves, small animals crossing).
  • Range: 110 meters outdoors.
  • EDC Technology (Environmental Discrimination Circuit): Intelligent environmental management that rejects false alarms caused by fog or snow and notifies in case of malfunction.
  • Beam Power Control: Adjustable to prevent reflections on white surfaces or interference from nearby beams.
  • Easy Adjustment: Special voltage measurement output for precise and quick alignment during installation.
  • Response Time: Adjustable from 50 to 500 milliseconds depending on the space's needs.
  • Relay Outputs: Three (3) independent outputs:
  • Alarm
  • EDC (Environmental Signal/Issue)
  • Tamper (Tamper Protection)
  • Construction: High-quality plastic and metal with IP54 ingress protection rating.
  • Power Supply: 10.5 to 28V DC.
  • Operating Temperature: Resistant to extreme conditions from -25°C to +70°C.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Connector
Wired

Connector

Wired
It connects to the installation system with a cable and is powered through it.
Scope
110 m

Scope

The range indicates the maximum distance (in meters) that the transmitter can be from the receiver in order to operate reliably.
Number of Beams
4 Bundles

Number of Beams

The number of beams indicates the quantity of infrared rays connecting the transmitter to the receiver. More beams mean greater coverage height and fewer false alarms, as all beams must be interrupted simultaneously to trigger the system.
Operating Voltage
10.5-28V

Operating Voltage

It refers to wired beam detectors and indicates how much voltage (in Volts) the detector needs to operate.
Protection Certification
IP54

Protection Certification

IP54
Suitable for indoor or outdoor areas with limited dust. Provides protection against the ingress of objects and withstands light rain or water splashes.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
