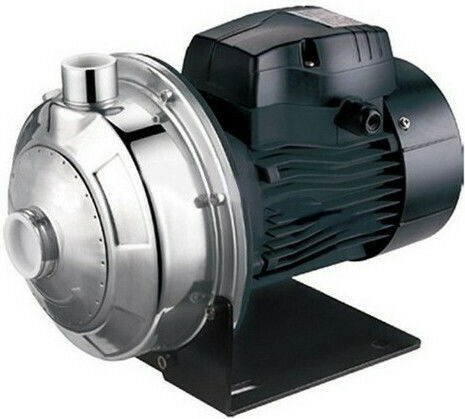

Leo Group AMSm120/1,1 Electric Surface Water Pump Centrifugal 1.5hp Single-Phase
Surface Water Pumps

Leo Group AMSm120/1,1 Electric Surface Water Pump Centrifugal 1.5hp Single-Phase Code: 01C17

Product Code: 01C17/M

Type of Pump: Stainless Steel Centrifugal Pump

Impeller Type: Stainless Steel

Horsepower: 1.5 HP

Voltage: 220V

  • Water Flow (max): 0 cubic/hour => Meters (max): 30.2 m
  • Water Flow...

Product Code: 01C17/M

Type of Pump: Stainless Steel Centrifugal Pump

Impeller Type: Stainless Steel

Horsepower: 1.5 HP

Voltage: 220V

  • Water Flow (max): 0 cubic/hour => Meters (max): 30.2 m
  • Water Flow (max): 3.6 cubic/hour => Meters (max): 26.7 m
  • Water Flow (max): 6 cubic/hour => Meters (max): 23.3 m
  • Water Flow (max): 8.4 cubic/hour => Meters (max): 19 m
  • ...
See full description See full description

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Single-Phase

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
Review the product
Product report

Description

Description

Product Code: 01C17/M

Type of Pump: Stainless Steel Centrifugal Pump

Impeller Type: Stainless Steel

Horsepower: 1.5 HP

Voltage: 220V

  • Water Flow (max): 0 cubic/hour => Meters (max): 30.2 m
  • Water Flow (max): 3.6 cubic/hour => Meters (max): 26.7 m
  • Water Flow (max): 6 cubic/hour => Meters (max): 23.3 m
  • Water Flow (max): 8.4 cubic/hour => Meters (max): 19 m
  • Water Flow (max): 9.6 cubic/hour => Meters (max): 16.4 m

Ports: 1¼” x 1”

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01C17

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
1.5 hp
Manometric Head
30.2 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Code: 01C17/M

Type of Pump: Stainless Steel Centrifugal Pump

Impeller Type: Stainless Steel

Horsepower: 1.5 HP

Voltage: 220V

  • Water Flow (max): 0 cubic/hour => Meters (max): 30.2 m
  • Water Flow (max): 3.6 cubic/hour => Meters (max): 26.7 m
  • Water Flow (max): 6 cubic/hour => Meters (max): 23.3 m
  • Water Flow (max): 8.4 cubic/hour => Meters (max): 19 m
  • Water Flow (max): 9.6 cubic/hour => Meters (max): 16.4 m

Ports: 1¼” x 1”

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
01C17

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
1.5 hp
Manometric Head
30.2 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
