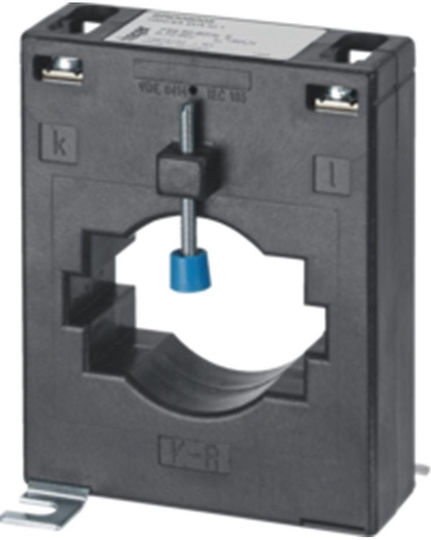

Current Transformer 800-5A SRD08005

• Component type: Plug-in current transformer
• Mounting method: DIN rail or back support
• Protection rating: 1
• Frequency: 50/60 Hz
• Nominal insulation voltage: 3 kV
• Maximum primary current: 800 A
• Maximum secondary current: 5 A
• Current on primary: 800 A
• Total power loss at rated current In: 6 W
• Installed product depth: 30 mm
• Installed product height: 108 mm
• Installed product width: 85 mm
• Opening width: 65 mm
• Opening height: 45 mm
