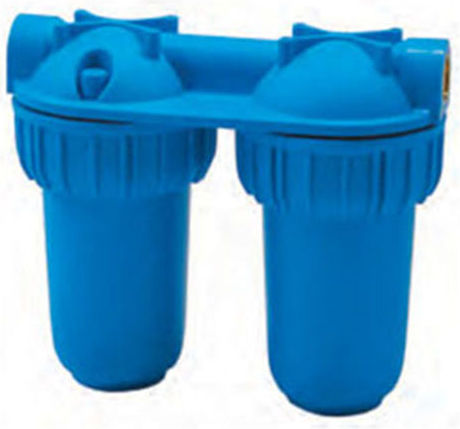

WATER FILTER MAIN SUPPLY JUNIOR DUPLEX PLUS 3P 1" BFO SX-AB (BLUE)

The Junior Plus water filters are usually installed in the main supply, for domestic and industrial use.

• Important note: Before installing each filter, a pressure reducer is recommended.
• During installation, use only Teflon tape.
• When replacing the cartridge, clean the gasket of the glass, wipe it from the water, apply lubricant (lubrikit), and place it back.
• When the gasket is worn out, it needs replacement.
• The photos may differ from the final product.

Made from non-toxic materials suitable for drinking water:

• Head/Rack Material: Reinforced polypropylene
• Glass Material: PET
• Air Release Valve: Polypropylene
• With brass or plastic thread.
• Sealing & Valve Gasket: EPDM
• Inlet/Outlet Threads: Brass CW 617 N
• Features an air release valve for easy filter change.

In 7” height and supply from 1/2” to 1”.

Single and double devices with blue or transparent glass and cartridges from 1μm to 70μm to choose from.

Can be installed sideways with a maximum inclination of 45 degrees (those with a rack).

Maximum operating pressure: 8 bar (116psi), provided the pressure is stable.

Maximum operating temperature: 45°C.

Minimum operating temperature: 4°C.

Install in a bright place.
