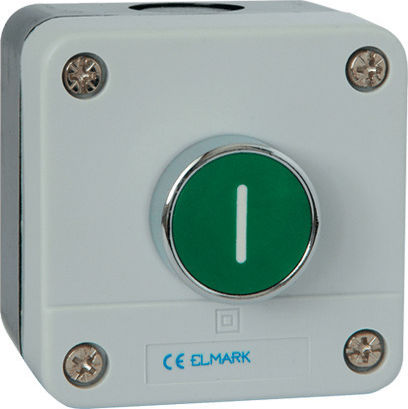

1 BUTTON WITH RETURN SPRING EEL1-B102 1HO IP44.

Technical specifications:

• Insulation voltage: 660V; 50/60Hz
• Surge voltage withstand: 6000V
• Nominal current: 6A (230V AC); 0.3A (230V DC)
• IP code: IP44
• Short-circuit protection: 10A gG switch outside the circuit
• Mechanical wear resistance: 1x10⁶ switching cycles
• Operating temperature: -20° to 70°C
• Humidity: 35-85% RH
• Connection wire torque: 0.15 Nm
• Conductor cross-section: 1х0.5; 1х0.75; 1x1; 1x1.5; 1x2.5mm²

Base:

• On a flat metal or plastic surface with a thickness: max 4mm
• Opening size: Ø22.5mm

Standards: EN60947-1; EN60947-5-1
