Abb Automatic Circuit Breaker 1A Double-pole AC 24828
Automatic Circuit Breaker

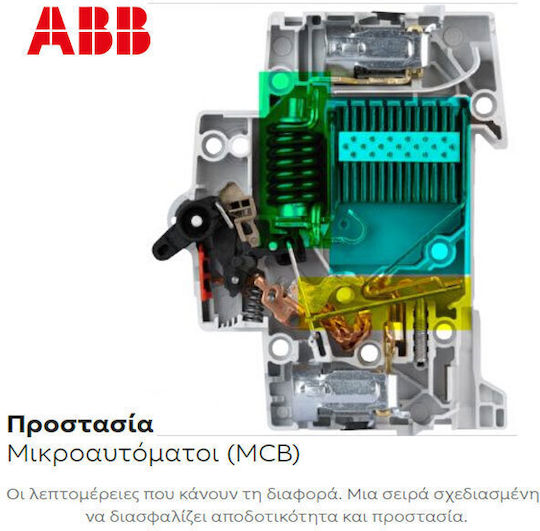

Abb Automatic Circuit Breaker 1A Double-pole AC 24828

Automatic fuse type S202-K1, DIN rail, 2 elements with screw terminals, 2 poles, curve K, designed for the protection of motors, transformers, and auxiliary circuits against overloads and short...

Automatic fuse type S202-K1, DIN rail, 2 elements with screw terminals, 2 poles, curve K, designed for the protection of motors, transformers, and auxiliary circuits against overloads and short circuits.

  • Suitable for residential, commercial, and industrial installations with loads that have high inrush currents.
  • Complies with IEC/EN 60898-1, IEC/EN 60947-2...
See full description See full description
Review the product
Product report

Description

Description

Automatic fuse type S202-K1, DIN rail, 2 elements with screw terminals, 2 poles, curve K, designed for the protection of motors, transformers, and auxiliary circuits against overloads and short circuits.

  • Suitable for residential, commercial, and industrial installations with loads that have high inrush currents.
  • Complies with IEC/EN 60898-1, IEC/EN 60947-2 standards.
  • Features safety terminals with double chamber and independent chamber for mounting busbars and cables.
  • Indelible laser-printed markings and indicators for easy identification.
  • Screws that do not come out of the body with loss protection.
  • Rated values: 1A, 400/440V AC, 50Hz.
  • Short-circuit breaking capacity: 6kA.
  • Protection degree: IP20, with cover IP40.
  • On/off indicators, red-green, in open gray (RAL 7035).

S200 series from ABB.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
2
Rated Current
1 A
Operating Curve
Curve K

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve K

Designed for loads with relatively high starting currents, such as motors or lower power transformers.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Automatic fuse type S202-K1, DIN rail, 2 elements with screw terminals, 2 poles, curve K, designed for the protection of motors, transformers, and auxiliary circuits against overloads and short circuits.

  • Suitable for residential, commercial, and industrial installations with loads that have high inrush currents.
  • Complies with IEC/EN 60898-1, IEC/EN 60947-2 standards.
  • Features safety terminals with double chamber and independent chamber for mounting busbars and cables.
  • Indelible laser-printed markings and indicators for easy identification.
  • Screws that do not come out of the body with loss protection.
  • Rated values: 1A, 400/440V AC, 50Hz.
  • Short-circuit breaking capacity: 6kA.
  • Protection degree: IP20, with cover IP40.
  • On/off indicators, red-green, in open gray (RAL 7035).

S200 series from ABB.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
2
Rated Current
1 A
Operating Curve
Curve K

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve K

Designed for loads with relatively high starting currents, such as motors or lower power transformers.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

35,06 €
14,00 €   shipping cost
