Asus TUF Gaming B660M-PLUS WIFI Motherboard Micro ATX with Intel 1700 Socket
Motherboards

Asus TUF Gaming B660M-PLUS WIFI Motherboard Micro ATX with Intel 1700 Socket

Key features:

  • 4 DDR5 Ram slots up to 6000(O.C.)
  • For Intel Alder/Raptor processors
  • Support for PCI Express 5.0 x16
  • Display connections: DisplayPort, HDMI
  • Slots for 4x Sata III and 2x M.2
  • 6 USB 3.2 ports, 2 USB 2.0 ports
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    Micro ATX

    Smaller than ATX, with fewer slots but sufficient for everyday use.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Product report

Description

Description

The Asus TUF Gaming B660M-PLUS WIFI motherboard is aimed at users seeking a smaller motherboard with gaming capabilities and performance for Intel 12th and 13th generation processors.

The motherboard is designed for smaller Micro-ATX cases and features built-in WiFi, PCIe 5.0 support, and technologies such as the Realtek S1200A codec and TUF LANGuard.

  • Intel Socket LGA 1700: Ready for 13th & 12th Gen Intel Core processors
  • Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, TUF military-grade components, and Digi+ VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
  • Latest connectivity: PCIe 5.0 slot, DDR5 memory, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C port, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 support
  • Built for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
  • Two-way AI noise cancellation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Cooling

  • 1. The extensive surface of the massive heatsink covers the VRM modules and coils to improve heat dissipation.
  • 2. The dual M.2 slots feature dedicated heatsinks, keeping the M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.

DRAM Overclocking Performance

Improvements in trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal paths across different layers of the PCB to reduce trace distance and adds shielding zones that significantly reduce crosstalk.

PCIe 4.0 M.2

The two PCIe 4.0 M.2 slots support up to two 2280 devices and data transfer speeds of up to 64 Gbps via PCIe 4.0, allowing for faster boot and application load times with operating system or application drives.

PCIe 5.0

Intel 12th and 13th generation processors bring PCIe 5.0 support to the market. PCIe 5.0 offers double the data transfer speed compared to PCIe 4.0, making it robust enough to handle new tasks with large data volumes. PCIe 5.0 also brings other advantages, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.

USB 3.2 Gen 2x2 Type-C

Extensive USB support ensures connections with a wide range of peripheral devices. The TUF GAMING B660M-PLUS WIFI includes a USB 3.2 Gen 2x2 Type-C port on the rear I/O panel that provides increased bandwidth and transfer speeds of up to 20 Gbps.

Thunderbolt 4 Support

The TUF GAMING B660M series features Thunderbolt 4 support via an integrated header. With an Intel-certified add-on card ASUS ThunderboltEX 4 the TUF GAMING B660M-PLUS WIFI can also enable bidirectional speeds of up to 40 Gbps on a single cable. Additionally, this card features a daisy-chain function for connecting multiple displays and supports up to an 8K resolution display. It can also provide up to 100 Watts of power for fast device charging.

TUF Gaming Alliance

The TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With new partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even further.

SafeSlot and SafeDIMM

PCIe 5.0 is 2 times faster than PCIe 4.0, so we adapted the SMT manufacturing process for the faster SafeSlot to ensure the highest data speeds. SafeSlot is a reinforced metal casing added to a PCIe slot to keep a card firmly installed. Meanwhile, the robust ASUS SafeDIMM cases support and protect memory modules on selected ASUS motherboards, allowing you to install your modules with speed, precision, and confidence.

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal coupling technology and top-tier surface-mounted capacitors to enhance performance, protecting the motherboard from lightning and static electricity.

Intel WiFi 6

The Intel WiFi 6 module is compatible with the 802.11ax standard and increases the theoretical maximum bandwidth to an incredible 2.4 Gbps. Perhaps more importantly for power users, it is optimized for more efficient operation in busy networks with a lot of competitive traffic. Pair your motherboard with ASUS WiFi 6 routers to fully enjoy the networking capabilities of WiFi 6.

Aura Sync RGB Lighting

A well-tuned system deserves a matching aesthetic. The TUF Gaming B660M series features edge lighting to enhance its robust appearance, and now the PCH heatsink gains RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LED lights, as well as third-party strips that you can connect to the integrated RGB headers. And all of this can be synchronized with an ever-growing portfolio of Aura-capable hardware.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual Core
Supported CPU Generation
Alder Lake
Socket
1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel B660

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4800, 5000OC, 5200OC, 5400OC, 5600OC, 5800OC, 6000OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
1 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.

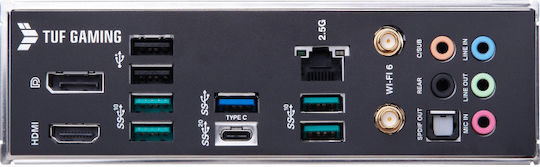

External Connectors

Rear USB-A outputs
2 USB 2.0 Ports, 5 USB 3.2 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
Yes
Extra
RGB Header

Extra

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1
Additional Audio Connections
Optical S/PDIF

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
