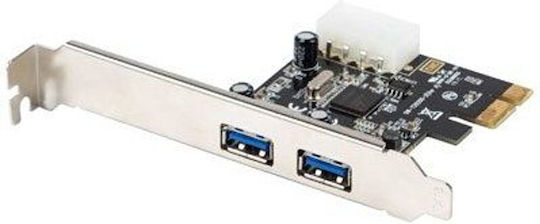

The Lanberg PCE-US3-002 card adds two USB 3.1 Gen 1 ports to a computer with a PCI Express interface. The USB-A ports are backward compatible with USB 3.0, 2.0, and 1.1 and support data transfer speeds of up to 5 Gb/s. Plug and play operation requires no additional configuration.
The card uses the Renesas NEC/uPD720200 chipset and is powered externally via a 4-pin female Molex connector. A low-profile bracket is included.
- Type: PCI Express expansion card
- Connectivity: USB 3.1 Gen 1
- USB ports: 2 female USB-A
- USB compatibility: USB 3.0, USB 2.0, and USB 1.1
- Data transfer speed: Up to 5 Gb/s
- Chipset: Renesas NEC/uPD720200
- Power supply: External, via a 4-pin female Molex connector
- Low-profile bracket: Included
- Operating system compatibility: Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, Windows Server 2012, 2008 R2, 2003 (32/64), Mac OS 10.9 or earlier (Intel-based), Linux 2.4.x or earlier
- Operating temperature: 0–50 °C
- Storage temperature: 0–80 °C
- Permitted humidity: 10–90% non-condensing
- Dimensions: 80 x 68 x 12.6 mm
- Product Number
- PCE-US3-002
- Type
- PCIe
- Connectivity
- USB 3.1
- Number of Ports
- 2
- Low Profile
- Yes
