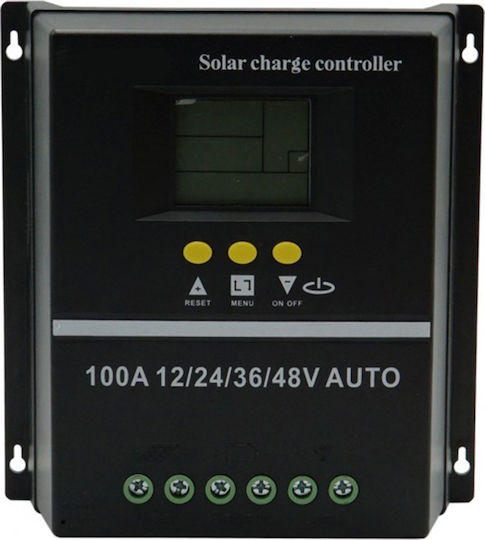

The PS-HY100A PWM charge controller manages battery charging in photovoltaic systems and supports voltages of 12 V, 24 V, 36 V, and 48 V. It automatically detects the system voltage and whether it is day or night, while PWM technology regulates charging. The easy-to-read 3-digit LCD displays battery voltage, charging current, and current power consumption.
Its features include automatic temperature compensation and adjustable charging and discharging parameters. It is suitable for sealed, flooded, and GEL batteries.
- Type: PWM
- Maximum voltage: 48 V
- Maximum current: 100 A
- Compatible system voltages: 12 V, 24 V, 36 V, 48 V
- Display: 3-digit LCD
- Display readings: Battery voltage, charging current, current power consumption
- Day and night detection: Automatic
- Temperature compensation: Automatic
- Charging and discharging parameters: Adjustable
- Battery types: Sealed, flooded, GEL
Manufacturer
OEM- Type
- PWM
- Maximum Voltage
- 48 V
- Maximum Short Circuit Current
- 100 A
