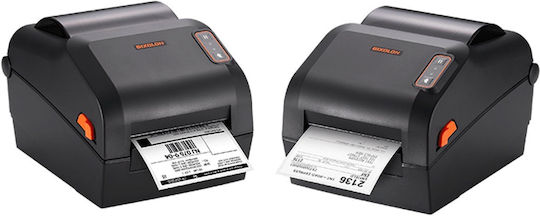

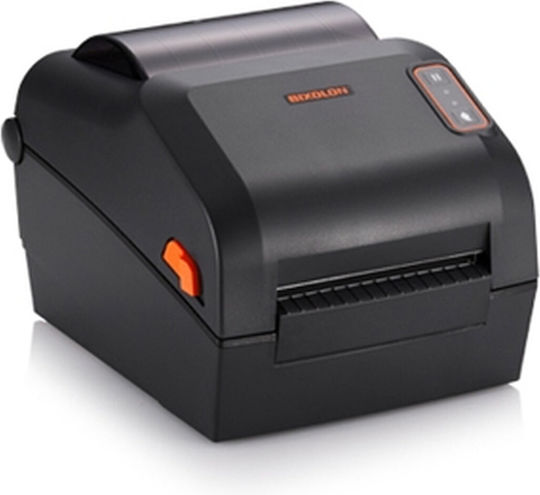

The Bixolon XD5-40d label printer uses direct thermal printing technology, with no ribbon required. It prints at a resolution of 203 × 203 DPI and speeds of up to 178 mm/s. Its clamshell design provides easy access to the interior.
It supports label printing for applications in retail, manufacturing, transportation, logistics, and healthcare.
- Printing technology: Direct thermal
- Print resolution: 203 × 203 DPI
- Print speed: Up to 178 mm/s
- Maximum print width: 110 mm
- Maximum media length: 1 m
- Maximum label width: 11.8 cm
- Maximum roll diameter: 12.7 cm
- Media thickness: 0.06–0.2 mm
- Connections: USB, RS-232 (Serial), Ethernet
- Automatic cutter: Yes
- Memory: 64 MB
- Flash: 128 MB
- Operating temperature: 0–40 °C
- Operating humidity: 10–80%
- Storage temperature: -20–60 °C
- Colour: Black
- Dimensions: 248 × 194 × 169 mm
- Weight: 1.89 kg
- Product Number
- XD5-40dEK
Main Specifications
- Type
- Thermal
- Connectivity
- USB, Serial, Ethernet
- Printing Technology
- Direct Thermal
- Portable
- No
Print Specifications
- Colour
- Black
- Maximum Resolution
- 203 DPI
- Print Speed
- 178 mm/s
Dimensions
- Width
- 248 mm
- Length
- 194 mm
- Height
- 169 mm
