Atte Power Converter DC/DC with Input Voltage 12V and Output Voltage 12V 4A (AVIC-50-120-OF)
Microelectronic Converter Modules

Atte Power Converter DC/DC with Input Voltage 12V and Output Voltage 12V 4A (AVIC-50-120-OF)

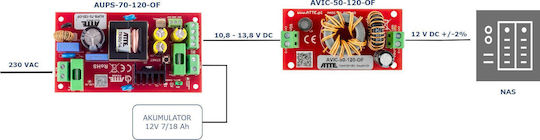

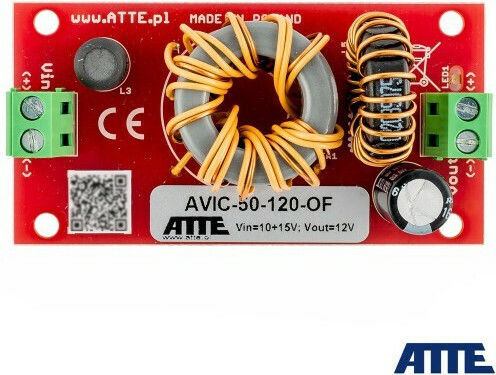

The DC/DC converter Atte AVIC-50-120-OF provides a stable power supply for devices requiring 12VDC, such as recorders and network drives. Some of its key features include:

  • Output: 12V with tolerance...

The DC/DC converter Atte AVIC-50-120-OF provides a stable power supply for devices requiring 12VDC, such as recorders and network drives. Some of its key features include:

  • Output: 12V with tolerance +/-2%
  • Output capacity: 50W steady
  • Input voltage range: 1015V
  • Output current: 4A (continuous current)
  • No-load current: max. 14mA
  • Output short circuit protection:...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The DC/DC converter Atte AVIC-50-120-OF provides a stable power supply for devices requiring 12VDC, such as recorders and network drives. Some of its key features include:

  • Output: 12V with tolerance +/-2%
  • Output capacity: 50W steady
  • Input voltage range: 10÷15V
  • Output current: 4A (continuous current)
  • No-load current: max. 14mA
  • Output short circuit protection: 6A (activation threshold)
  • Input/output insulation voltage: 2kV
  • Operating temperature: -25°C ... +50°C
  • Enclosure: without enclosure (open design)
  • Dimensions: 39 × 76 × 35 mm
  • Weight with packaging: 2.000 kg
  • EAN (GTIN): 5902143690207
  • Manufacturer code: 17750 [11011860]

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Power Module
DC/DC
Minimum Input Voltage
12 V
Maximum Input Voltage
12 V
Minimum Output Voltage
12 V
Maximum Output Voltage
12 V
Maximum Output Current
4 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The DC/DC converter Atte AVIC-50-120-OF provides a stable power supply for devices requiring 12VDC, such as recorders and network drives. Some of its key features include:

  • Output: 12V with tolerance +/-2%
  • Output capacity: 50W steady
  • Input voltage range: 10÷15V
  • Output current: 4A (continuous current)
  • No-load current: max. 14mA
  • Output short circuit protection: 6A (activation threshold)
  • Input/output insulation voltage: 2kV
  • Operating temperature: -25°C ... +50°C
  • Enclosure: without enclosure (open design)
  • Dimensions: 39 × 76 × 35 mm
  • Weight with packaging: 2.000 kg
  • EAN (GTIN): 5902143690207
  • Manufacturer code: 17750 [11011860]

Manufacturer

Manufacturer Details

Warnings & Safety Information
Power Module
DC/DC
Minimum Input Voltage
12 V
Maximum Input Voltage
12 V
Minimum Output Voltage
12 V
Maximum Output Voltage
12 V
Maximum Output Current
4 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
