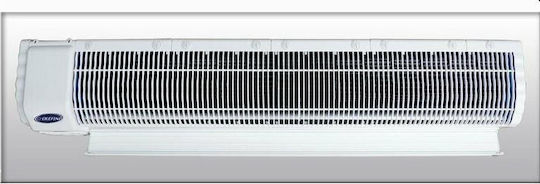

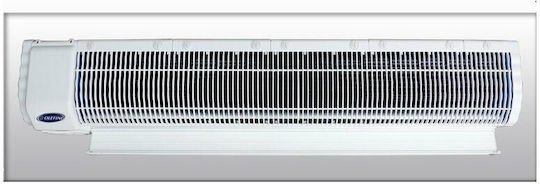

Olefini Water Heated Air Curtain with Maximum Air Supply 900m³/h 110cm
Air Curtains

Olefini Water Heated Air Curtain with Maximum Air Supply 900m³/h 110cm

General Characteristics:

  • Energy saving
  • Modern design
  • Easy installation
  • Low noise level
  • 1/2" water supply connector
  • Motor position: Center, Left, Right
  • Optional: Filter, Vertical Support, Door Switch,...

General Characteristics:

  • Energy saving
  • Modern design
  • Easy installation
  • Low noise level
  • 1/2" water supply connector
  • Motor position: Center, Left, Right
  • Optional: Filter, Vertical Support, Door Switch, Stainless Steel Shell (430)

Technical Characteristics:

  • Maximum opening width: 1.0m
  • Maximum opening height: 2.3m
  • Maximum air exit speed: 7/5.5 (m/sec)
  • Maximum...
See full description See full description

  • Width

    110

    When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

  • Maximum Airflow

    The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.

  • Maximum Installation Height

    2.3

    Installation height according to the model specifications.

  • Type

    Water Heated

    Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
  • See all
Review the product
Product report

Description

Description

General Characteristics:

  • Energy saving
  • Modern design
  • Easy installation
  • Low noise level
  • 1/2" water supply connector
  • Motor position: Center, Left, Right
  • Optional: Filter, Vertical Support, Door Switch, Stainless Steel Shell (430)

Technical Characteristics:

  • Maximum opening width: 1.0m
  • Maximum opening height: 2.3m
  • Maximum air exit speed: 7/5.5 (m/sec)
  • Maximum air flow: 900/710 m³/h
  • Motor output power: 120 watt
  • Motor operating capacitor: 4 μf
  • Total water volume (lt): 0.73
  • Noise level at 1m: 54/50 dB(A)

Dimensions:

  • Total length: 1100 mm
  • Total width: 274 mm
  • Height: 172 mm
  • Outlet length: 900 mm
  • Outlet width: 54 mm
  • Outlet height: 64 mm

Weight: 19 Kg

Temperatures:

  • Air inlet temperature: +15°C
  • Water inlet temperature: +70°C
  • Thermal Power (kw): 8.4/7.3
  • Air outlet temperature (°C): 42.2/44.7
  • Water outlet temperature (°C): 63.2/64.1
  • Water pressure drop ΔΡ (kPa): 4.2
  • Water inlet temperature: +90

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Water Heated

Type

Water Heated
Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
Maximum Air Supply
900 m³/h

Maximum Air Supply

The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.
Maximum Placement Height
2.3 m

Maximum Placement Height: 2.3


Installation height according to the model specifications.
Operating Voltage
Single-phase
with Remote Control
No
Width
110 cm

Width: 110


When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

General Characteristics:

  • Energy saving
  • Modern design
  • Easy installation
  • Low noise level
  • 1/2" water supply connector
  • Motor position: Center, Left, Right
  • Optional: Filter, Vertical Support, Door Switch, Stainless Steel Shell (430)

Technical Characteristics:

  • Maximum opening width: 1.0m
  • Maximum opening height: 2.3m
  • Maximum air exit speed: 7/5.5 (m/sec)
  • Maximum air flow: 900/710 m³/h
  • Motor output power: 120 watt
  • Motor operating capacitor: 4 μf
  • Total water volume (lt): 0.73
  • Noise level at 1m: 54/50 dB(A)

Dimensions:

  • Total length: 1100 mm
  • Total width: 274 mm
  • Height: 172 mm
  • Outlet length: 900 mm
  • Outlet width: 54 mm
  • Outlet height: 64 mm

Weight: 19 Kg

Temperatures:

  • Air inlet temperature: +15°C
  • Water inlet temperature: +70°C
  • Thermal Power (kw): 8.4/7.3
  • Air outlet temperature (°C): 42.2/44.7
  • Water outlet temperature (°C): 63.2/64.1
  • Water pressure drop ΔΡ (kPa): 4.2
  • Water inlet temperature: +90

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Water Heated

Type

Water Heated
Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
Maximum Air Supply
900 m³/h

Maximum Air Supply

The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.
Maximum Placement Height
2.3 m

Maximum Placement Height: 2.3


Installation height according to the model specifications.
Operating Voltage
Single-phase
with Remote Control
No
Width
110 cm

Width: 110


When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

1.272,96 €
65,00 €   shipping cost
