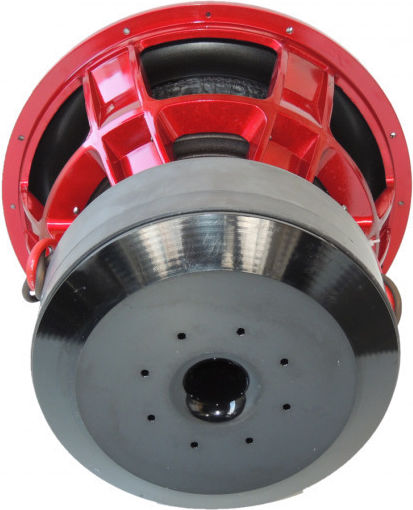

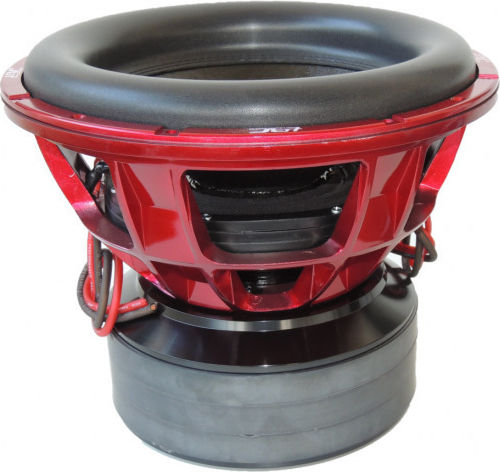

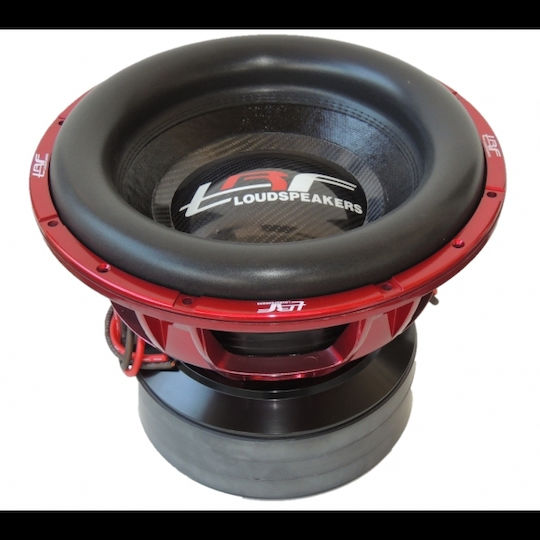

Model: TRF SW1560M D0.5

Size: 15 inches

RMS Power Handling: 6000 wrms

RMS Program: 15,000 - 20,000 wrms (3 seconds)

Maximum Power Capacity: 12000 wmax

Cone: Multi-layer paper

Dust Cap: Carbon

Surround Material: Foam

Voice Coil: Aluminum

Voice Coil Size: 4.0 inches

Voice Coil Layers: 8 layers

Nominal Impedance: D0.5

Voice Coil Wire: Aluminum

Spider Size: 4''ID / 10''OD

Spider Material: NOMEX

Spider Layers: 2 pieces x 5 layers

Basket: Cast Aluminum

Basket Color: Red

Sensitivity: 91.5 dB

Frequency Range: 30-100 Hz

Fs: 30 Hz

Mechanical Q Factor (Qms):

Electrical Q Factor (Qes):

Total Q Factor (Qts):

Xmax: 30 mm

Power Rating: N/A

Magnet Weight: -Oz

Magnet: Ferrite "high performance magnet"

Magnet Size: Φ280*25 mm

External Dimension: 385 mm

Mounting Depth: 283 mm

Magnet Dimension: 280 mm

Mounting Tube Size: 354 mm

Total Weight: 46 kg
