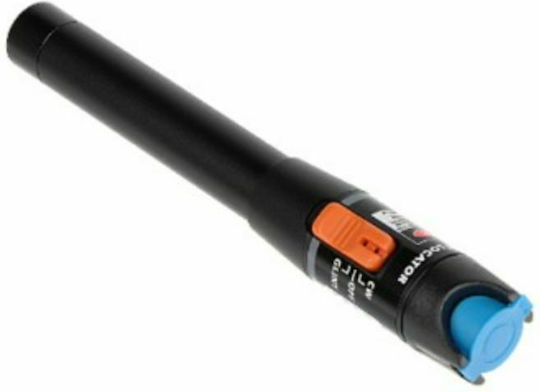

The LTA cable tester visually detects faults in optical fibers, such as breaks and fractures, using visible light at a wavelength of 650 nm. It operates in continuous or pulsed mode and tests optical fibers up to 10 km long.
- Type: Optical fiber
- Wavelength: 650 nm
- Optical output power: Over 10 mW
- Range: Up to 10 km
- Modes: Continuous (CW) and pulsed (GLINT)
- Connector type: Universal, for standard 2.5 mm connectors such as SC/FC/ST
- Compatibility: Single-mode and multimode optical fibers
- Material: Powder-coated aluminum
- Power supply: 2 LR6 (AA) 1.5 V batteries, not included
- Weight: 0.08 kg without battery
- Dimensions: Ø 27 x 176 mm
- Package contents: Case
- Warning: The laser beam must not be directed at the skin or eyes
- Type
- Optical Fiber
- Socket
- -
- Digital
- No
