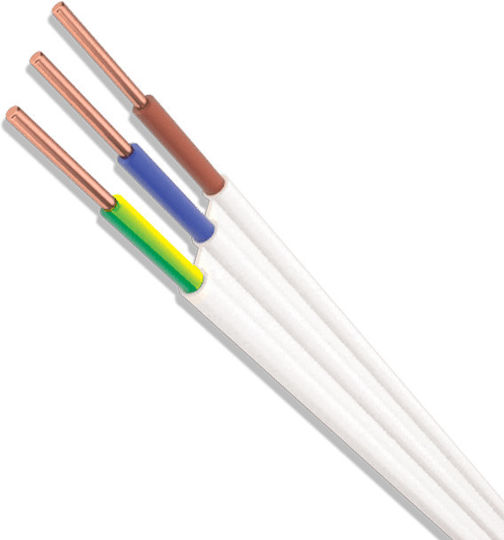

NYIFY-O/J 3x2.50mm² cable suitable for static installation in and above plaster, in lighting or electrical power networks.

Technical specifications:

• Number of conductors: 3
• Cross-section: 2.5 mm²
• Brand: ELMARK
• Manufactured according to DIN VDE 0250, part 201
• Nominal voltage: U0/U - 220/380V
• Testing voltage: 2000V
• Maximum conductor temperature: +70°C
• Maximum conductor temperature in short circuit for 5 seconds: +160°C
• Ambient temperature: -30°C to +50°C
• Minimum installation temperature: -5°C
• Minimum bending radius during installation:
  • For diameters up to 10mm: 10D
  • For diameters over 10mm: 15D
• Flame test: flame retardant BDS IEC 332-1
• Sheath color: white, gray, or black
• Structure:
  • Copper conductors
  • Flexibility class 1 according to DIN VDE 0295 (HD 383)
  • Insulation: PVC
  • Sheathing: PVC
  • Parallel mounted cables - flat with bridge
• Core identification:
  • Two-conductor: black, blue
  • Three-conductor: black, blue, brown or yellow-green, black, blue

Minimum order: 50 meters.
