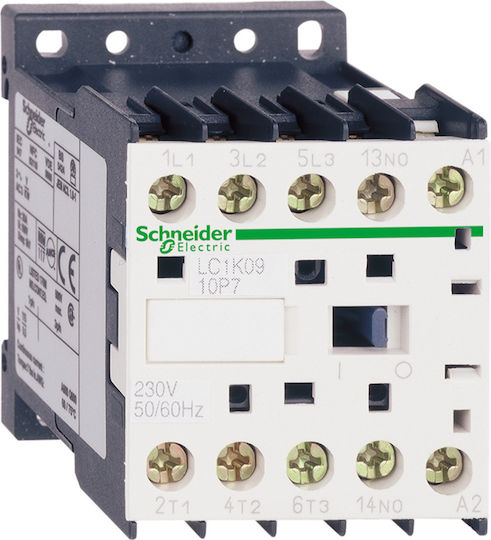

Industrial Relay 3P 9A 230V AC 1NO 0NC - LC1K0910P7

• Number of poles: 3
• Voltage: 690 V AC 50/60 Hz
• Power/signal circuit current AC-1: 20 A (440 V AC)
• Circuit current AC-3: 9 A (440 V AC)
• Control voltage: 230 V AC, 50/60 Hz
• Number of auxiliary contacts: 1
• Number of secondary contacts: 0
• Impulse voltage: 8 kV
• Overvoltage category: III
• Short-circuit capacity: 110 A at 440 V
• Average resistance: 3 mOhm at 50 Hz - Ith 20 A
• Installation method: plate, rails
• Terminal contacts: screw
• Signal circuit frequency: 400 Hz
• Minimum signal off current: 5 mA
• Minimum signal off voltage: 17 V
• Signal insulation resistance: 10 MΩ
• Height: 58 mm
• Width: 45 mm
• Depth: 57 mm
• Usage: motor control, resistive load
