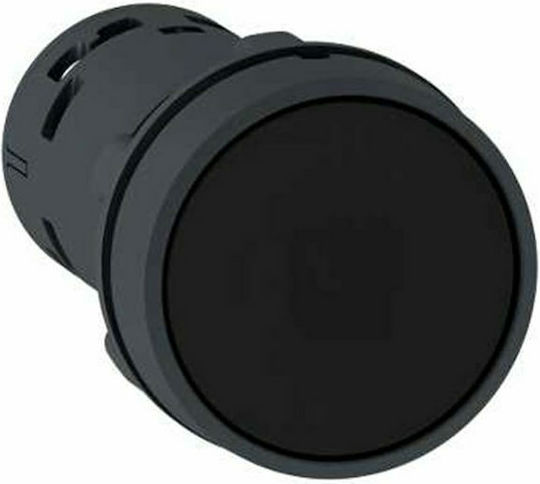

22mm Black Control Button with Spring Return 1Z (XB7NA21)

Key Parameters

• Product range: Harmony XB7
• Product type: Push button
• Mounting diameter: 22 mm
• Protection level: IP20 (rear), IP65 (front)
• Head shape: Round
• Operator type: Automatic return
• Contact type and structure: 1 NO
• Correction: Locknut fastening under recommended tightening torque: 2.2 N.m (+/- 0.2 N.m)
• Mechanical endurance: 1000000 cycles
• Tightening torque: 0.8...1.2 N.m
• gG fuse according to EN/IEC 60947-5-1
• [Ui] rated insulation voltage: 250 V according to EN/IEC 60947-1
• [Uimp] rated impulse withstand voltage: 4 kV according to EN/IEC 60947-1
• [Ith] rated operating current:
  • 0.1 A at 250 V, DC-13
  • 0.22 A at 125 V, DC-13
  • 0.3 A at 240 V, AC 14
  • 0.6 A at 120 V, AC-14
• Electrical endurance: 1000000 cycles, DC-13, 0.3 A at 24 V
• Electrical reliability: IEC 60947-5-4
