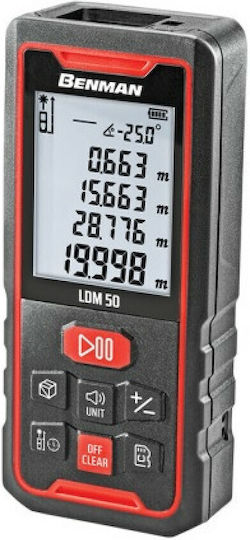

- Easy-to-use Laser Distance Meter with one-person measurement
- IP54 protection against water and dust
- Automatic shutdown and low power indication
- Metric measurement system only
- Very slim housing design with belt clip for easy carrying
- Area/volume/indirect height and patent-pending surface measurement
- Large 3-line LCD graphic display with automatic white backlight
- Built-in 2-position automatic reference indication, unfold the pin for easy angle measurements
- Indirect height measurements (Pythagoras 2 points, 3 points, partial height)
- Min/Max sweep & continuous monitoring
- Distance addition and subtraction for layout
- Memory recall for the last 20 measurements
Technical Specifications:
- Accuracy: ± 1.5 mm
- Battery Type: 2 x AAA
- Dimensions: 119 x 40 x 32mm
- Screen Size: 26 x 37 mm
- Automatic Height Tracking: No
- Tilt Sensor: No
- Kit includes: 2 x AAA Batteries
- Laser Class: Class 2
- Max. Measuring Range: 50 m
- Pythagoras Function: 2-point, 3-point, partial height
- Range: 0.05 - 50 m
- Standard Equipment: Belt clip
- Weight with battery: 0.1 kg
Dimensions
- Minimum Distance
- -
- Maximum Distance
- 50 m
- Measurement Accuracy (±)
- 2 mm
- Wavelength
- 635 nm
- Laser Category
- Class 2
- Laser Beam Color
- Red
- Weight
- 100 gr
Features
- Measurement Capabilities
- Volume, Area, Pythagorean
- Bluetooth
- No
- USB Charging
- No
- Addition / Subtraction
- Yes
- Maximum / Minimum Value
- Yes
- Built-in Level
- No
Battery & Accessories
- Number of Required Batteries
- -
- Battery Voltage
- 1.5 V
- Battery Capacity
- -
- Battery Type
- AAA
- Case
- No
Device Certifications
- Protection Certification
- IP54
- ISO 16331-1
- No
