- Nominal Power: 200W
- Nominal Power Voltage (Vmpp): 18.7V
- Nominal Power Current (Impp): 10.7A
- Open Circuit Voltage (Voc): 22.1V
- Short Circuit Current (Isc): 11.34A
- Cell Efficiency: 22%
- Dimensions: 1190 x 890 x 30 mm
- Weight: 10.2 kg
- Material: Aluminum frame with glass, EVA, and back sheet
- Junction Box Protection Rating: IP67
Description
Specifications

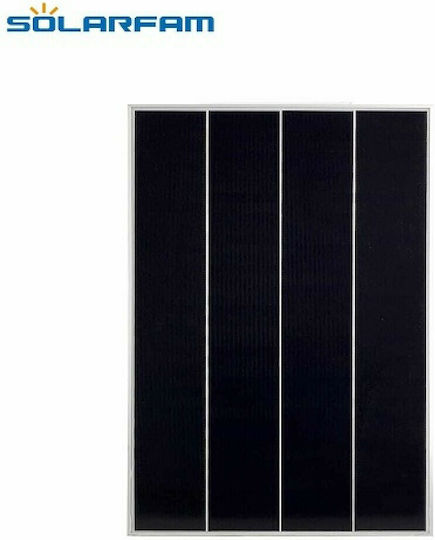

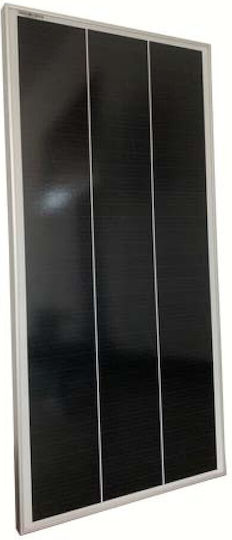

The SOLARFAM 200W Monocrystalline Shingle Solar Panel (SZ-200-S) is designed for efficient energy production in various applications, such as boats, caravans, and outdoor installations. It uses high-efficiency monocrystalline cells with shingle technology, offering increased performance and reduced risk of hot spots.
Key Features:
- Nominal Power: 200W
- Nominal Power Voltage (Vmpp): 18.7V
- Nominal Power Current (Impp): 10.7A
- Open Circuit Voltage (Voc): 22.1V
- Short Circuit Current (Isc): 11.34A
- Cell Efficiency: 22%
- Dimensions: 1190 x 890 x 30 mm
- Weight: 10.2 kg
- Material: Aluminum frame with glass, EVA, and back sheet
- Junction Box Protection Rating: IP67
The panel features a waterproof design, making it suitable for use in all weather conditions. The shingle technology reduces internal resistance, improving performance compared to traditional busbar connection methods. Additionally, its robust construction with an aluminum frame ensures long-term durability and stability.
Overall, the SOLARFAM 200W Monocrystalline Shingle panel is a reliable choice for efficient and stable solar energy production in various applications.
Technical Specifications
- Type
- Monocrystalline
- Maximum Power
- 200 W
- Flexible
- No
- Maximum Voltage
- 12 V
Dimensions
- Length
- 1190 mm
- Width
- 890 mm
- Thickness
- 30 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
