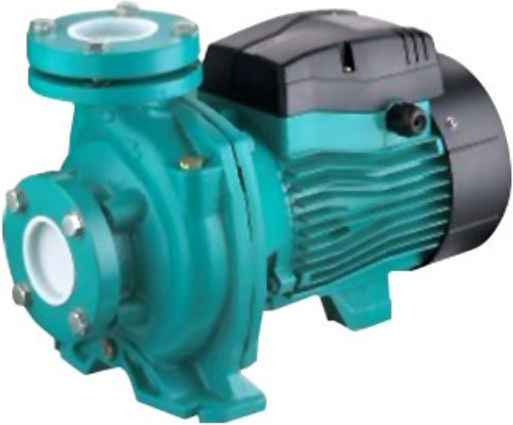

Leo Group ACM220BF3 Electric Surface Water Pump Centrifugal 3hp Single-Phase
Surface Water Pumps

Leo Group ACM220BF3 Electric Surface Water Pump Centrifugal 3hp Single-Phase Code: 01B108

Product Code: 01B108/M

Pump Type: Flanged centrifugal pump

Impeller Type: Bronze

Horsepower: 3 HP

Voltage: 220V

Water Flow (max):

  • 36 cubic meters/hour => Meters (max): 16 m
  • 48 cubic meters/hour =>...

Product Code: 01B108/M

Pump Type: Flanged centrifugal pump

Impeller Type: Bronze

Horsepower: 3 HP

Voltage: 220V

Water Flow (max):

  • 36 cubic meters/hour => Meters (max): 16 m
  • 48 cubic meters/hour => Meters (max): 14 m
  • 66 cubic meters/hour => Meters (max): 7 m

Ports: 3’’ x 3’’

See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Single-Phase

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
344 00 €
Delivery Thu, 24 Sep - Mon, 28 Sep
86,00 €   shipping cost
Sent from Greece
From Trusttools
Greece
See Water Pumps on the page of Trusttools

Learn more about invoicing
Review the product
Product report

Description

Description

Product Code: 01B108/M

Pump Type: Flanged centrifugal pump

Impeller Type: Bronze

Horsepower: 3 HP

Voltage: 220V

Water Flow (max):

  • 36 cubic meters/hour => Meters (max): 16 m
  • 48 cubic meters/hour => Meters (max): 14 m
  • 66 cubic meters/hour => Meters (max): 7 m

Ports: 3’’ x 3’’

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01B108

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
3 hp
Manometric Head
16 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Code: 01B108/M

Pump Type: Flanged centrifugal pump

Impeller Type: Bronze

Horsepower: 3 HP

Voltage: 220V

Water Flow (max):

  • 36 cubic meters/hour => Meters (max): 16 m
  • 48 cubic meters/hour => Meters (max): 14 m
  • 66 cubic meters/hour => Meters (max): 7 m

Ports: 3’’ x 3’’
