The Zoom F8n Pro multitrack portable recorder records up to 8 channels and 10 tracks to SD/SDHC/SDXC cards, with the ability to record simultaneously to cards and a computer via USB. 32-bit float recording with dual A/D converters supports sample rates up to 192 kHz and requires no level adjustment. The 8 inputs combine XLR/TRS connectors and accept microphone- or line-level signals.
The device features microphone preamps with up to 75 dB of gain and an EIN of less than -127 dBu, as well as switchable +24 V/+48 V phantom power. It supports Ambisonics and MS decoder modes, a high-pass filter, and phase inversion. It can also be used as an 8-input/4-output USB audio interface, while the F8 Control App for iOS and Android enables wireless remote control.
Power is supplied by 8 AA batteries, a 9–18 V DC power supply via the Hirose connector, or a 12 V AC adapter. The ZOOM AD-19 power adapter is included. The aluminum housing features a 2.4-inch backlit LCD screen.
- Type: Portable multitrack audio recorder
- Recording channels: 8
- Recording tracks: 10
- Recording media: SD/SDHC/SDXC cards, up to 1 TB per card
- Microphone inputs: 8

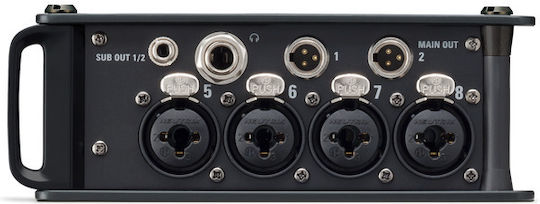

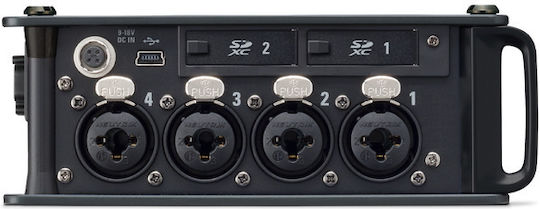

- Input connectors: 8 combo XLR/TRS, with selectable microphone- or line-level signal
- Phantom power: Switchable, +24 V or +48 V
- Recording resolution: 32-bit float
- Sample rate: Up to 192 kHz
- Formats for high-definition video: 47.952/48.048 kHz
- Microphone preamps: Up to 75 dB of gain, EIN less than -127 dBu
- Audio features: Ambisonics, MS decoder, high-pass filter, and phase inversion
- USB recording: Simultaneous recording to a memory card and computer
- USB audio interface mode: 8 inputs/4 outputs

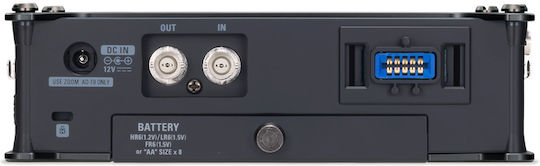

- Timecode input and output: BNC, accuracy of 0.2 ppm during operation and up to 0.2 ppm when powered off
- Main audio outputs: 2 balanced mini-XLR
- Headphone output: 3.5 mm mini jack
- Microphone compatibility: ZOOM microphone capsules
- Remote control: Wireless via the F8 Control App for iOS and Android

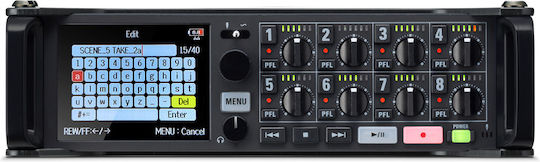

- Display: 2.4-inch backlit color LCD
- Housing material: Aluminum
- Power supply: 8 AA batteries, 9–18 V DC power supply via Hirose, or 12 V AC adapter
- Package contents: ZOOM AD-19 12 V DC power adapter
Product Details
- Type
- Portable
- Accessory Pack
- -
Technical Specifications
- Channels
- Multichannel
- Recording to
- Memory Card
- Built-in Microphone
- No
- Microphone Inputs
- 8
Connections
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- Yes
- USB
- Yes
- XLR
- Yes
- RCA
- No
Power Source
- Phantom Power
- Yes
- Battery
- Yes
- Power
- Yes
- USB Power
- No
