Pedrollo 4SR2/17 F-HYD Pump Drilling (without Motor) 108363
Submersible Water Pumps

Pedrollo 4SR2/17 F-HYD Pump Drilling (without Motor) 108363

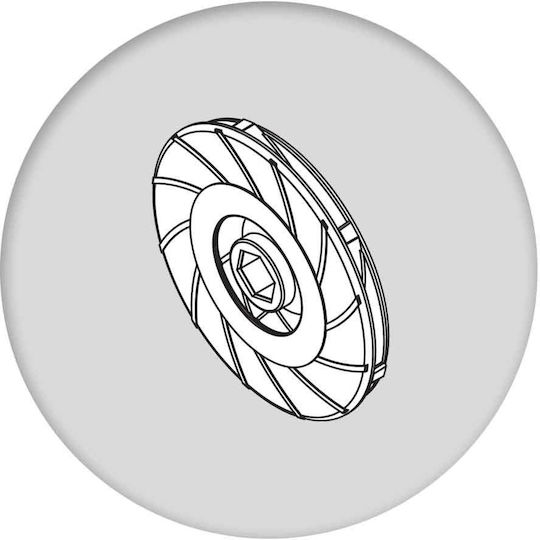

Clean water pump suitable for home, urban, or industrial use. Thanks to its floating impellers, it can pump water with sand up to 200g/m³.

  • Type: 4SR 2/17-F
  • Pump Type: Radial flow
  • Power Supply:...

Clean water pump suitable for home, urban, or industrial use. Thanks to its floating impellers, it can pump water with sand up to 200g/m³.

  • Type: 4SR 2/17-F
  • Pump Type: Radial flow
  • Power Supply: Electric Current
  • For well diameter: 4"-100mm
  • Power: 1.50Hp-1100Watt
  • Usage: Clean water
  • Discharge Outlet Diameter: 1 1/4"-32mm
  • Max Performance: 133.00M
  • Max Flow Rate:...
See full description See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

  • Manometric Height

    94

    The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

    • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
    • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
  • See all
The product is not available for shipping to the selected country.
Review the product
Product report

Description

Description

Clean water pump suitable for home, urban, or industrial use. Thanks to its floating impellers, it can pump water with sand up to 200g/m³.

  • Type: 4SR 2/17-F
  • Pump Type: Radial flow
  • Power Supply: Electric Current
  • For well diameter: 4"-100mm
  • Power: 1.50Hp-1100Watt
  • Usage: Clean water
  • Discharge Outlet Diameter: 1 1/4"-32mm
  • Max Performance: 133.00M
  • Max Flow Rate: 3.90m3/h
  • Body Material: Stainless Steel AISI 304
  • Impeller Material: Plastic (NORYL)
  • Liquid Temperature: 35°C
  • Additional Features: Equipped with a floating impeller
  • Net Weight: 6.20Kg
  • Product Length: 9.80cm
  • Product Width: 9.80cm
  • Product Height: 53.10cm
  • Max Sand Content: 200g/m3
  • Max RPM: 2900RPM

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Drilling

Type

Drilling
Drilling pumps are used for pumping water or other liquids from underground boreholes (water sources) to surfaces for various purposes, such as water supply, irrigation, industrial applications
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Horsepower
1.5 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
1125 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Motor Rotation Speed
2900 rpm

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
No

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
1 1/2"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Head Height
94 m

Maximum Head Height: 94


The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

  • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
  • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
Maximum Output
3.9 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).
Pump Submersion Depth
133 m
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
