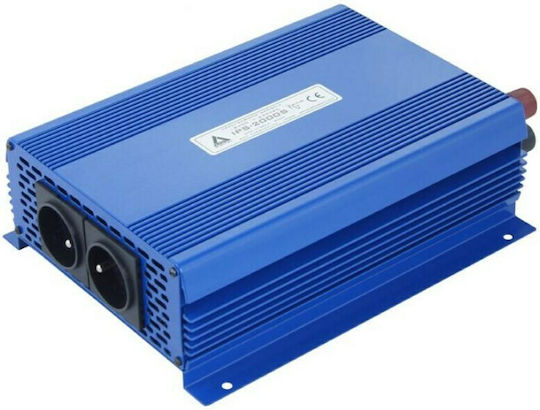

The Azo Digital inverter is a pure sine wave device that converts a 12 V DC input voltage to a 220 V AC output voltage. It has a rated power of 2000 W and a maximum instantaneous startup power of 4000 W. It includes Eco Mode and a standard Schuko socket.

Cooling is provided by natural ventilation and a fan. The inverter features short-circuit and overload protection, as well as automatic shutdown in the event of overvoltage or low voltage.

• Type: Pure sine wave
• Rated input voltage: 12 V
• Input voltage range: 10.8–15 V DC
• Output voltage: 220 V AC
• Rated power: 2000 W
• Maximum instantaneous startup power: 4000 W
• Output frequency: 50 ± 3 Hz
• Pure sine wave deviation: ±5%
• Mode: Eco Mode
• Protections: Short circuit, overload, overvoltage and low voltage
• Low-voltage warning: 10.5 ± 0.3 V
• Automatic overvoltage shutdown: DC 15 ± 1 V
• Automatic low-voltage shutdown: DC 10 ± 0.3 V

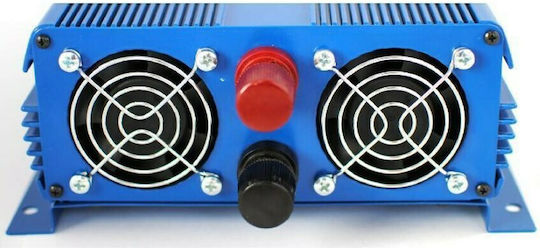

• Cooling: Natural ventilation and fan
• Maximum ambient temperature: 75 °C
• Maximum efficiency: >85%
• Material: Aluminum
• Protection rating: IP20
• Dimensions: 420 × 140 × 140 mm
• Net weight: 6.5 kg

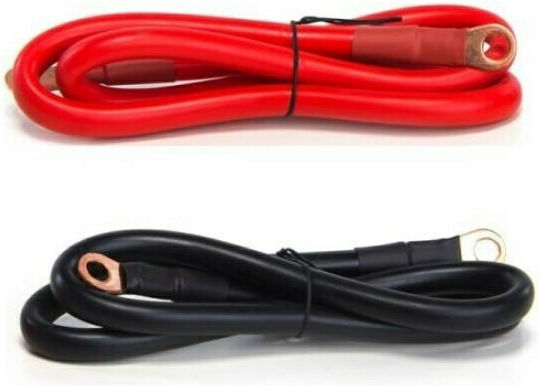

• Package contents: Inverter, 12 V battery connection cable, user manual in English
