GloboStar On-Off switch Pushbutton with Lighting Orange 1pcs
On-Off switches

GloboStar On-Off switch Pushbutton with Lighting Orange 1pcs Code: 70784

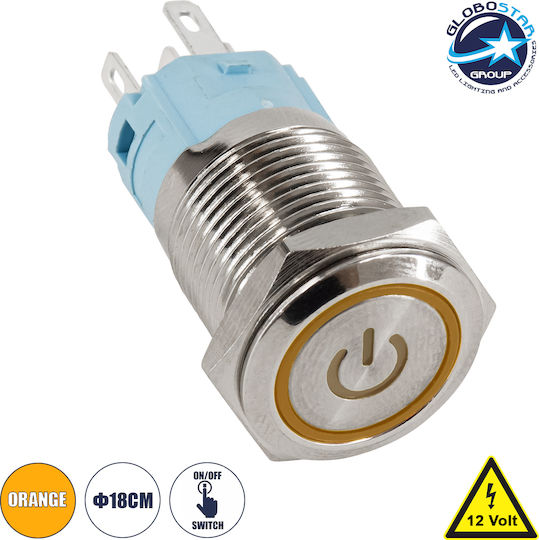

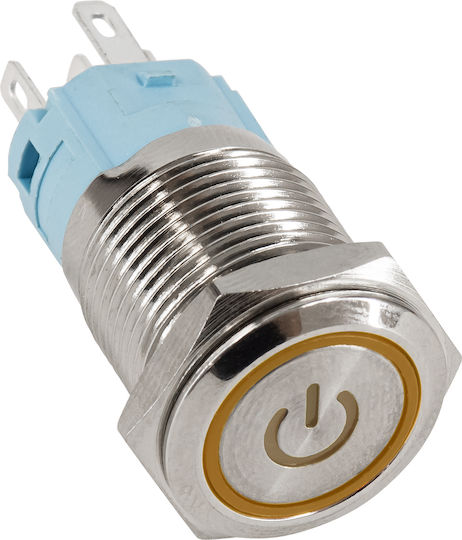

The GloboStar 70784 push button is an On-Off switch for 12 V DC, with orange illumination and a stainless steel body. It has a maximum load current of 5 A and an IP67 protection rating.

  • Type: On-Off...

The GloboStar 70784 push button is an On-Off switch for 12 V DC, with orange illumination and a stainless steel body. It has a maximum load current of 5 A and an IP67 protection rating.

  • Type: On-Off push button
  • Material: Stainless steel
  • Rated voltage: 12 V DC
  • Maximum load current: 5 A
  • Illumination color: Orange
  • Protection rating: IP67
  • Operating temperature...
See full description See full description
5 40 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From Elektroeisagogiki 4.9 (6)
4.9 (6 reviews)
Greece
20 pieces
See Microelectronic Components on the page of Elektroeisagogiki

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Product report

Description

Description

The GloboStar 70784 push button is an On-Off switch for 12 V DC, with orange illumination and a stainless steel body. It has a maximum load current of 5 A and an IP67 protection rating.

  • Type: On-Off push button
  • Material: Stainless steel
  • Rated voltage: 12 V DC
  • Maximum load current: 5 A
  • Illumination color: Orange
  • Protection rating: IP67
  • Operating temperature range: -20 to +55 °C
  • Contact resistance: ≤50 mΩ
  • Insulation resistance: ≥1000 mΩ
  • Service life: 50000 h
  • On-Off cycles: 100000
  • Diameter: 18 mm
  • Overall diameter: 22 mm
  • Mounting hole diameter: 16 mm
  • Weight: 11.2 g
  • Certifications and standards: CE, EMC Directive 2014/30/EU, RoHS 2 Directive 2011/65/EU-(EU)2015/863-(EU)2017/2102

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
70784
Type
Pushbutton
Colour
Orange
Features
with Lighting

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (12)

Reviews

5.0
12
5.0
Review this product
  1. 12
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

What do users say? AI-generated summary

Users report that it works properly and appreciate the illuminated LED and the button. It is used, among other things, to control amplifiers and subwoofers in cars. However, there is some confusion about how it works: one comment describes it as momentary, while another says it’s an on/off switch that changes state with each press.

  • O Nontas Eimai
    5
    0 out of 2 members found this review helpful
    O Nontas Eimai

    Verified purchase

    This review is about the colour: Green

    Bought by mistake. WARNING: it is Push ON, meaning the switch stays on only while you press it. Just like doorbells work, in other words. Otherwise, it works. I just wanted On/Off and ended up buying that separately later

    Translated from Greek ·
    Did you find this review helpful?
  • O Nontas Eimai
    5
    O Nontas Eimai

    Verified purchase

    This review is about the colour: Green

    It does exactly the job it is supposed to do, installed in a car for controlling (on/off) a subwoofer

    Translated from Greek ·
    Did you find this review helpful?
  • DarkRenagade
    5
    DarkRenagade

    Verified purchase

    This review is about the colour: Blue

    Just fine. Used in a car amplifier. The switch is on-off, meaning you press it & it activates the corresponding device, you press it again & it deactivates it. When the LED turns on or off, i.e. whether it's on or off, is determined by the wiring you do. You can do the same regarding whether you want the device to be activated/deactivated when the switch is pressed or flat. The LED can also remain permanently off or permanently on. The color of the LED when it lights up is blue and not light blue, as with some others where the color is stated as blue, but it is not.

    Translated from Greek ·
    Did you find this review helpful?
  • Δημήτρης Χαλκίδα
    5
    7 out of 7 members found this review helpful
    Δημήτρης Χαλκίδα

    Verified purchase

    This review is about the colour: Blue

    Very good with nice buttons and lighting, it has a lot of complexity if you are not an electrician in my case but thank goodness for YouTube.
